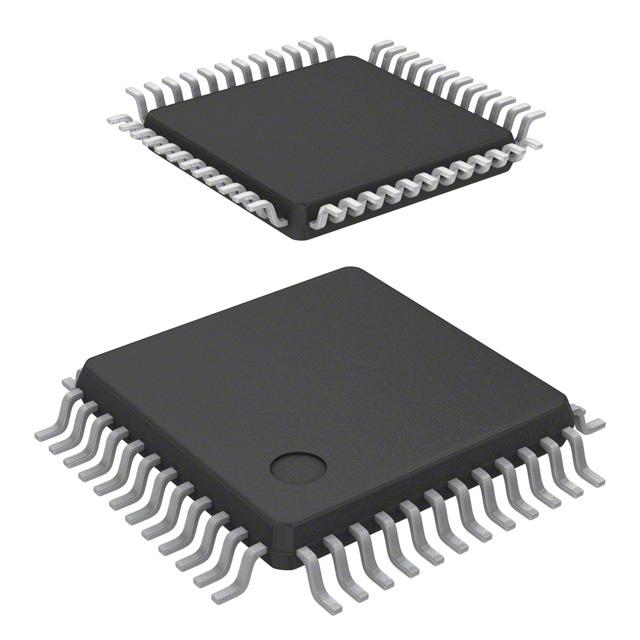

Zilog S3F8S19XZZ-QR89

S3F8S19XZZ-QR89 Zilog
Zilog

Product Information

HTSUS:
8542.31.0001
RoHS Status:
ROHS3 Compliant
Program Memory Size:
32KB (32K x 8)
Peripherals:
LCD, LVD, LVR, PWM, WDT
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
1.8V ~ 5.5V
Package / Case:
48-QFP
RAM Size:
2K x 8
Packaging:
Tray
Program Memory Type:
FLASH
REACH Status:
REACH Unaffected
Connectivity:
I2C, SPI, UART/USART
EEPROM Size:
-
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Number of I/O:
40
DigiKey Programmable:
Not Verified
Core Size:
8-Bit
Mounting Type:
Surface Mount
Series:
S3F8
Supplier Device Package:
48-QFP (10x10)
Data Converters:
A/D 10x10b
Core Processor:
SAM88RC
Speed:
12MHz
Base Product Number:
S3F8S19
ECCN:
EAR99
Checking for live stock

This is manufactured by Zilog. The manufacturer part number is S3F8S19XZZ-QR89. It is assigned with possible HTSUS value of 8542.31.0001. The product is rohs3 compliant. In addition, 32kb (32k x 8) is the program memory size. It has supplied with other peripherals, such as lcd, lvd, lvr, pwm, wdt. The product has -40°c ~ 85°c (ta) operating temperature range. The supply voltage of a bespoke product includes 1.8v ~ 5.5v. Moreover, the product comes in 48-qfp. The product has typical 2k x 8 RAM size. In addition, tray is the available packaging type of the product. It is a flash program memory type. In addition, it is reach unaffected. It provides connectivity solutions through i2c, spi, uart/usart. The product is a internal type of oscillator. Its typical moisture sensitivity level is 3 (168 hours). 40 is the I/O value of the product. It has a core size 8-bit. The product is available in surface mount configuration. The product s3f8, is a highly preferred choice for users. 48-qfp (10x10) is the supplier device package value. The typical data converters include a/d 10x10b. sam88rc is the product's core processor. It has a robust speed of 12mhz. Moreover, it corresponds to s3f8s19, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
S3 Family Overview(Datasheets)
pdf icon
S3F8S19, S3F8S15 Specification(Datasheets)
pdf icon
S3F8S19, S3F8S15 Brief(Datasheets)
pdf icon
Zilog RoHS(Environmental Information)
pdf icon
S3 Pkg Label Chg 6/Sep/2023(PCN Packaging)
