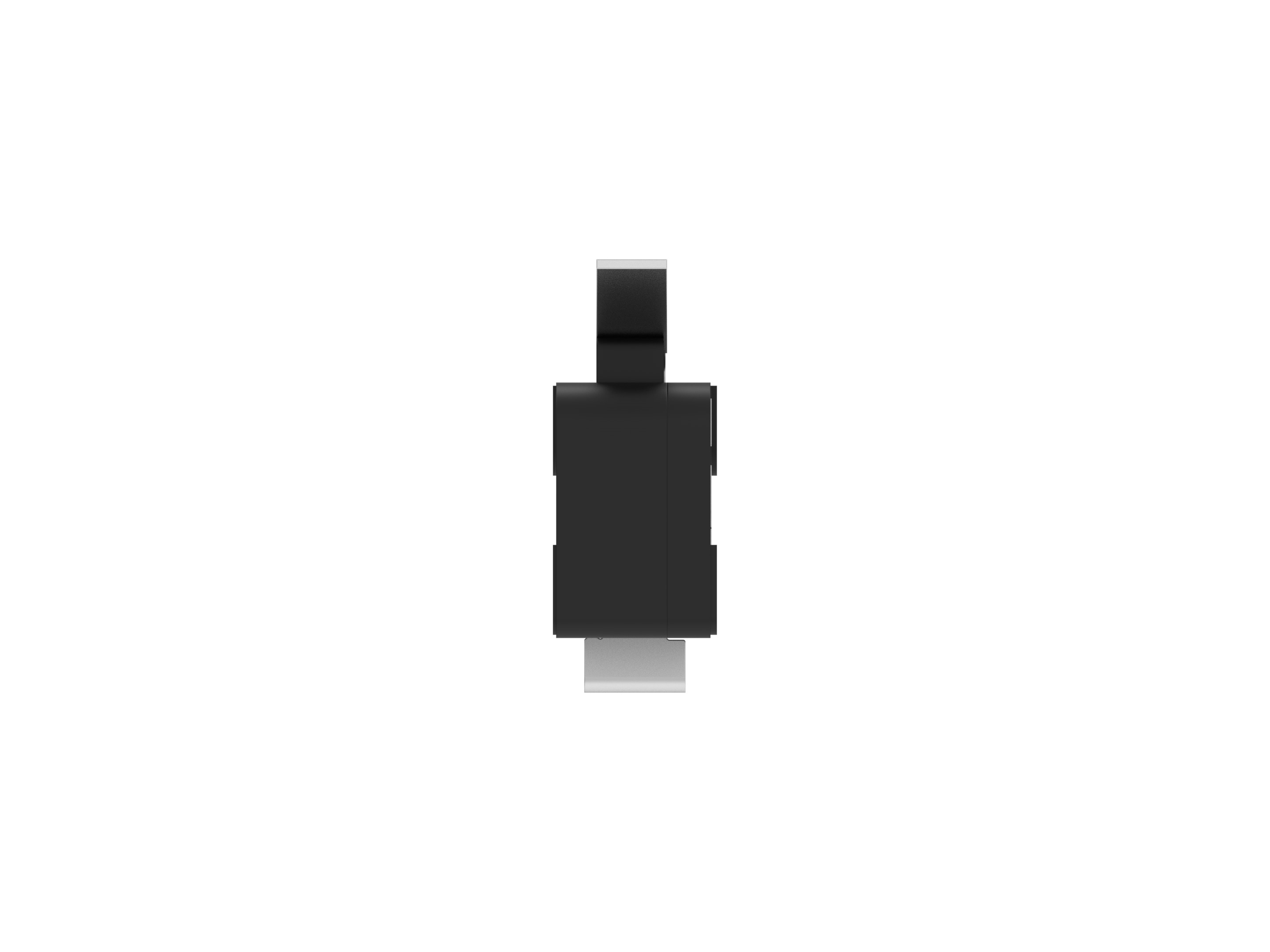

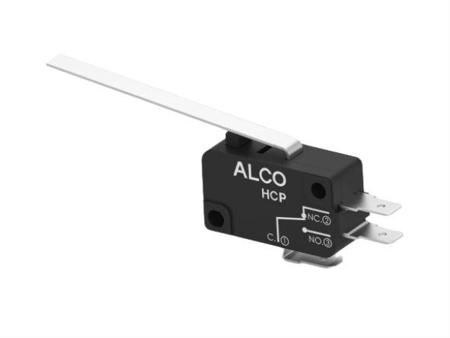

TE Connectivity Extended Snap Action Micro Switch, Quick Connect Terminal, 20A, SPDT

HCP20DTD3H04 TE Connectivity Extended Snap Action Micro Switch, Quick Connect Terminal, 20A, SPDT
HCP20DTD3H04
HCP20DTD3H04
ET28273647
ET28273647
TE Connectivity

Product Information

Switch Operation:
Snap Action
Operating Force:
95 g
Standards Met:
cUL, ENEC, UL
Voltage Rating:
125/250V ac
Contact Current Rating:
20A
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +125°C
Contact Configuration:
SPDT
Actuator Type:
Extended
Mechanical Life:
10000000Operations
Release Force:
9gf
Maximum Operating Temperature:
+125°C
Terminal Type:
Quick Connect
Switch Housing:
PBT
RoHs Compliant
Checking for live stock

This is Extended Snap Action Micro Switch Quick Connect Terminal 20A SPDT manufactured by TE Connectivity. The manufacturer part number is HCP20DTD3H04. It provides snap action switch operation. It has a 95 g of operating force. The product complies with all safety standards, such as cul, enec, ul. Moreover, the product has a nominal 125/250v ac voltage rating. The rated contact current is 20a. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +125°c of operating temperature range. The contact is equipped with spdt configuration. The product carries extended actuator. The product also provide mechanical stability with 10000000operations. It carries a release force of 9gf. It has a maximum operating temperature of +125°c. The terminal is a quick connect type. It has a pbt switch housing .
