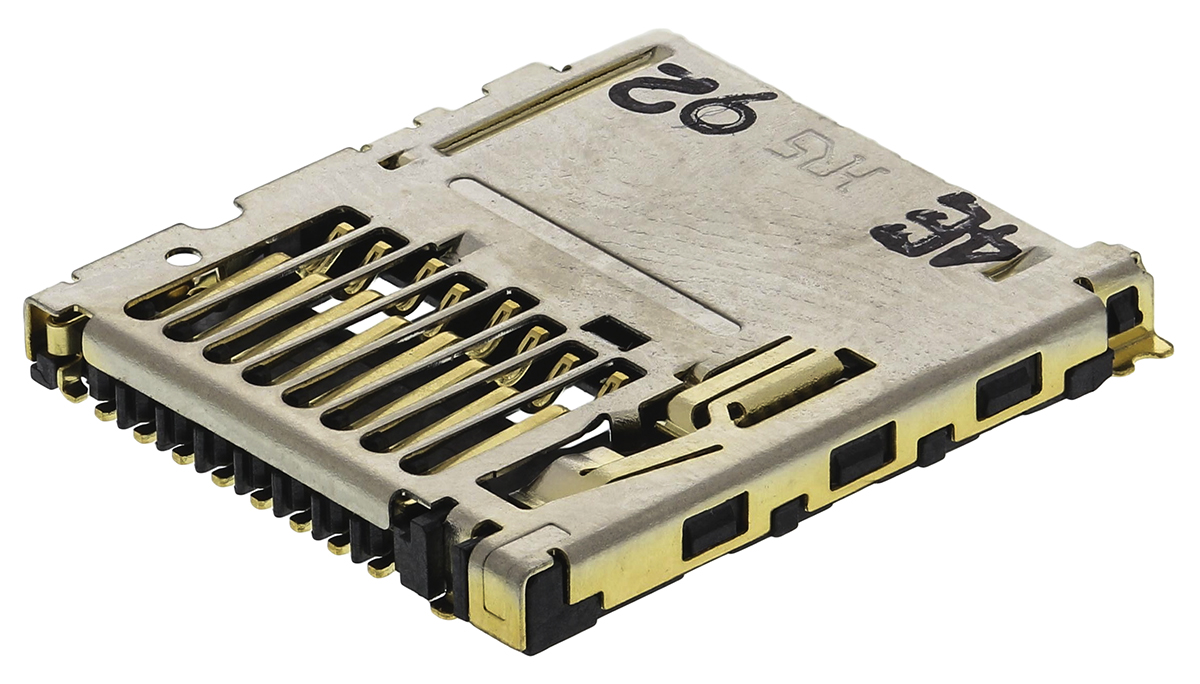

Hirose Right Angle Surface Mount MicroSD Card Connector, with Solder Termination

DM3BT-DSF-PEJS Hirose Right Angle Surface Mount MicroSD Card Connector, with Solder Termination
DM3BT-DSF-PEJS
Hirose

Product Information

Dimensions:
13.85 x 16.05 x 1.83mm
Mounting Type:
Surface Mount
Card Type:
MicroSD
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
13.85mm
Housing Material:
Liquid Crystal Polymer
Width:
16.05mm
Depth:
1.83mm
Number of Rows:
1
Contact Plating:
Gold
Pitch:
1.1mm
Number of Contacts:
8
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-25°C
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is Right Angle Surface Mount MicroSD Card Connector with Solder Termination manufactured by Hirose. The manufacturer part number is DM3BT-DSF-PEJS. The given dimensions of the product include 13.85 x 16.05 x 1.83mm. The product is available in surface mount configuration. The product features a microsd card type. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. Its accurate length is 13.85mm. The product also features robust liquid crystal polymer housing material. Furthermore, the product is 16.05mm wide. The product comes in 1.83mm depth. It comes in 1 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 1.1mm. The product contains 8 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -25°c. The product is made from sturdy copper alloy materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
8 way angled SD card drawing(Technical Reference)
