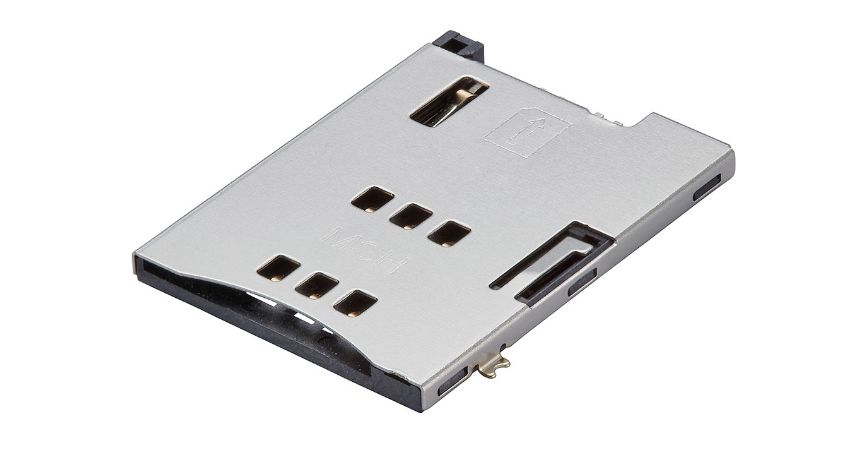

Molex Horizontal Surface Mount SIM Card Connector, with Solder Termination

47553-2001 Molex Horizontal Surface Mount SIM Card Connector, with Solder Termination
Molex

Product Information

Number of Contacts:
6
Dimensions:
26.5 x 19.35 x 2.34mm
Mounting Type:
Surface Mount
Card Type:
Mini SIM Card
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Length:
26.5mm
Housing Material:
Thermoplastic
Width:
19.35mm
Depth:
2.34mm
Insertion/Removal Method:
Push/Push
Contact Plating:
Gold
Pitch:
1.27mm
Contact Material:
Copper Alloy
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-30°C
Series Number:
47553
RoHs Compliant
Checking for live stock

This is Horizontal Surface Mount SIM Card Connector with Solder Termination manufactured by Molex. The manufacturer part number is 47553-2001. The product contains 6 contacts. The given dimensions of the product include 26.5 x 19.35 x 2.34mm. The product is available in surface mount configuration. The product features a mini sim card card type. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 26.5mm. The product also features robust thermoplastic housing material. Furthermore, the product is 19.35mm wide. The product comes in 2.34mm depth. Moreover, it has a/an push/push insertion/removal method . The high-quality gold is used as contact plating material. Moreover, the product is 1.27mm. The product is made from sturdy copper alloy materials. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -30°c. It carries [Serial Number] serial number.
