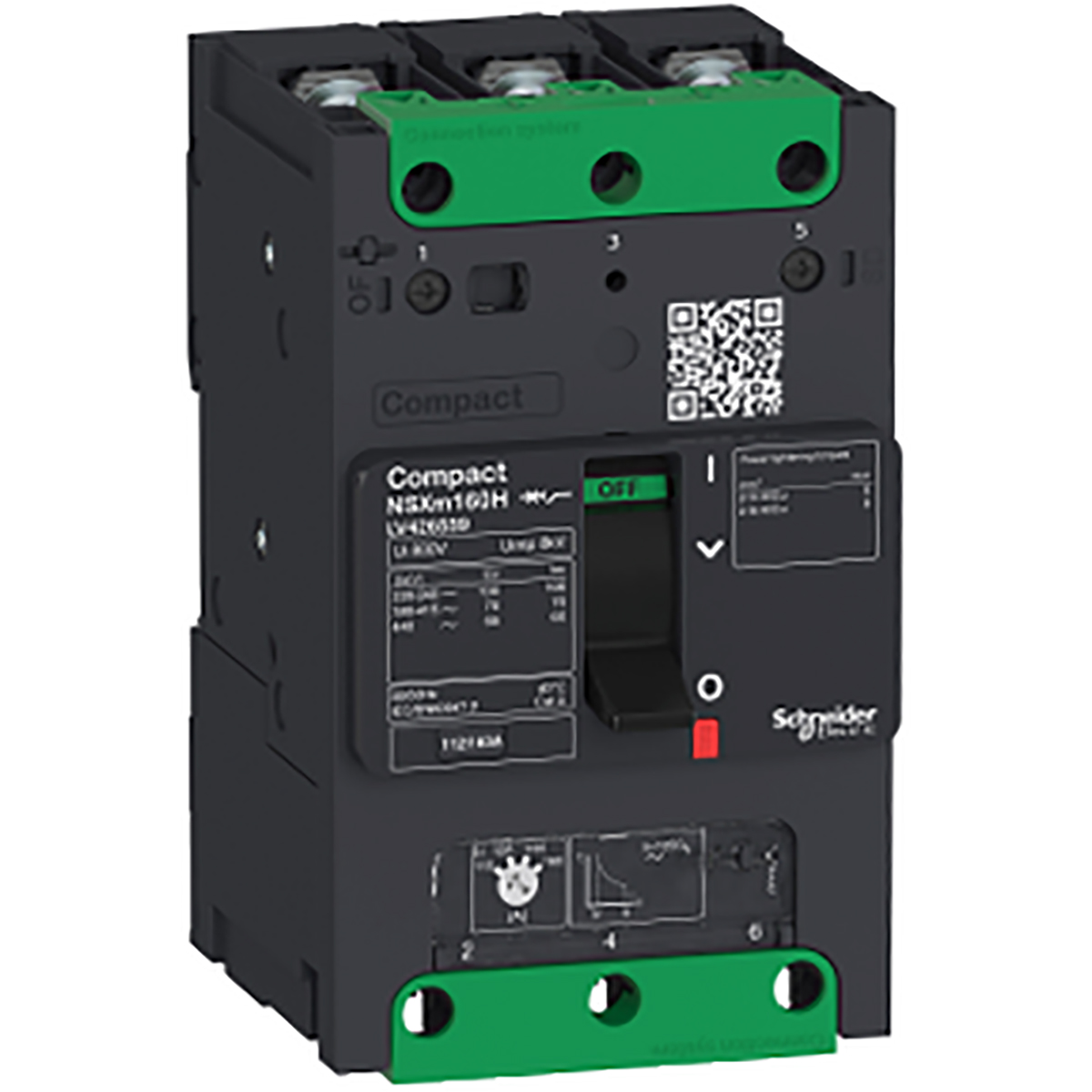

NSXm 36kA TM16D 3P busbar

LV426350 NSXm 36kA TM16D 3P busbar
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Current Rating:
16A
Circuit Breaker Type:
MCCB
Tripping Mechanism:
Thermal-Magnetic
Series:
NSXm
Mounting Hole Diameter:
4.5mm
Length:
81mm
Breaking Capacity at Maximum Voltage Rating:
36 kA
Tripping Characteristics:
Type D
Mounting Style:
DIN Rail Mount
Width:
80mm
Depth:
137mm
Rated AC Voltage:
690V
Break Time:
Time Delay
Range:
Compact
Terminal Contact Type:
Clip-on, Screw
Number of Poles:
3
Reset Actuator Type:
Toggle Switch
RoHs Compliant
Checking for live stock

This is NSXm 36kA TM16D 3P busbar manufactured by Schneider Electric. The manufacturer part number is LV426350. Better World Verification Options - green premium. Is it a better world product? yes. The product has a current rating of 16a. This is a type of mccb, a circuit breaker with unique features. It utilises thermal-magnetic tripping mechanism. The product nsxm, is a highly preferred choice for users. The given diameter of mounting hole is 4.5mm. Its accurate length is 81mm. The product has 36 ka breaking capacity at maximum voltage rating. It allows type d tripping features. The product is available in din rail mount style. Furthermore, the product is 80mm wide. The product comes in 137mm depth. The product has a rated AC voltage of 690v. It has a/an time delay break time . It features compact range. The terminal contact is kind of clip-on, screw. It has equipped with 3 poles. It is a toggle switch reset actuator.

pdf icon
Datasheet(Technical Reference)
pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LV426350 on website for other similar products.
We accept all major payment methods for all products including ET16990416. Please check your shopping cart at the time of order.
You can order Schneider Electric brand products with LV426350 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MCCBs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NSXm 36kA TM16D 3P busbar. You can also check on our website or by contacting our customer support team for further order details on NSXm 36kA TM16D 3P busbar.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16990416 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schneider Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16990416.
Yes. We ship LV426350 Internationally to many countries around the world.
