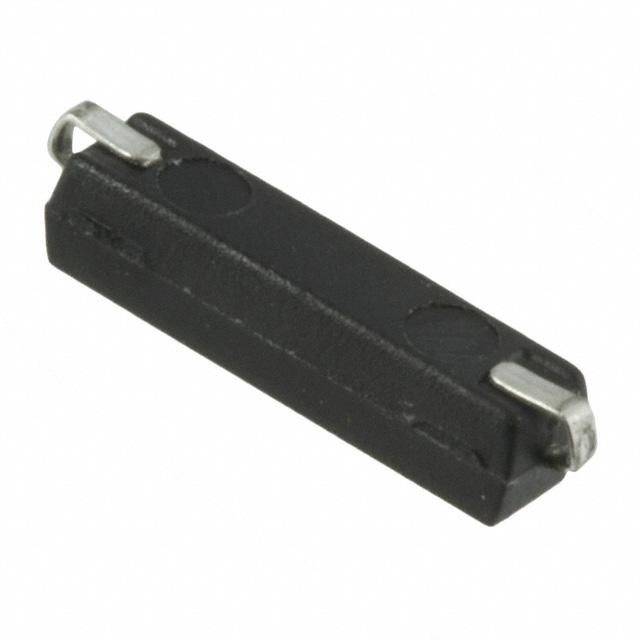

Standex-Meder Electronics MK17-B-3

MK17-B-3 Standex-Meder Electronics
Standex-Meder Electronics

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Power - Rated:
10W
Capacitance:
0.4 pF
Operating Temperature:
-40°C ~ 130°C
Height Above Board:
0.083" (2.10mm)
Type:
Molded Body Reed
Length - Overall:
0.382" (9.70mm)
Release Range:
-
REACH Status:
REACH Unaffected
edacadModel:
MK17-B-3 Models
edacadModelUrl:
/en/models/1022733
Manufacturer:
Standex-Meder Electronics
Voltage - Switching AC:
170 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
0.6 ms
Circuit:
SPST-NO
standardLeadTime:
24 Weeks
Size - Body:
0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
Current - Switching:
500mA (AC/DC)
Mounting Type:
Surface Mount
Series:
MK17
Current - Carry:
500mA (AC/DC)
Release Time:
0.05 ms
Voltage - Switching DC:
170 V
Packaging:
Tape & Reel (TR)
Operate Range:
10 ~ 15AT
ECCN:
EAR99
Checking for live stock

This is manufactured by Standex-Meder Electronics. The manufacturer part number is MK17-B-3. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. Moreover, it has j lead terminal style. It features a power rating of 10w. It provides a 0.4 pf of capacitance value. The product has -40°c ~ 130°c operating temperature range. It is 0.083" (2.10mm) high above board. It comes in molded body reed configuration. The product has an integral 0.382" (9.70mm) overall length. In addition, it is reach unaffected. The standex-meder electronics's product offers user-desired applications. While 170 v is the AC switching voltage. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 0.6 ms. It has an integral spst-no circuit. It has a long 24 weeks standard lead time. Has a body size of 0.335" l x 0.083" w x 0.083" h (8.50mm x 2.10mm x 2.10mm). The typical switching current is 500ma (ac/dc). The product is available in surface mount configuration. The product mk17, is a highly preferred choice for users. The product has 500ma (ac/dc) carry current. While 0.05 ms is its release time. Features 170 v of switching DC voltage. In addition, tape & reel (tr) is the available packaging type of the product. It operates at a range of 10 ~ 15at. The product is designated with the ear99 code number.

pdf icon
Change of Marking 11/DEC/2023(PCN Design/Specification)
pdf icon
MK17 Series Datasheet(Datasheets)
pdf icon
MK17-B-3_Spec_Sheet(Datasheets)
