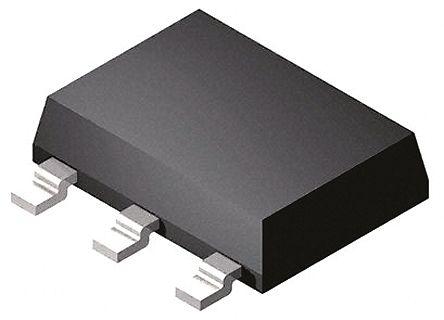

DiodesZetex AP1117E18G-13, LDO Regulator, 1A, 1.8 V, 6.4 → 18 Vin 3+Tab-Pin, SOT-223

AP1117E18G-13 DiodesZetex , LDO Regulator, 1A, 1.8 V, 6.4 → 18 Vin 3+Tab-Pin, SOT-223
DiodesZetex

Product Information

Polarity:
Positive
Number of Outputs:
1
Load Regulation:
18 mV
Maximum Operating Temperature:
+125 °C
Dimensions:
6.5 x 3.5 x 1.65mm
Mounting Type:
Surface Mount
Maximum Output Current:
1A
Maximum Input Voltage:
18 V
Output Type:
Fixed
Height:
1.65mm
Width:
3.5mm
Length:
6.5mm
Output Voltage:
1.8 V
Package Type:
SOT-223
Minimum Operating Temperature:
0 °C
Minimum Input Voltage:
6.4 V
Reference Voltage:
1.25V
Pin Count:
3+Tab
Line Regulation:
0.2 %
RoHs Compliant
Checking for live stock

This is LDO Regulator 1A 1.8 V 6.4 → 18 Vin 3+Tab-Pin SOT-223 manufactured by DiodesZetex. The manufacturer part number is AP1117E18G-13. While providing positive polarity. Additionally, the product is supplied with 1 outputs. Load Regulation - 18 mv. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 6.5 x 3.5 x 1.65mm. The product is available in surface mount configuration. Featuring 1a of maximum output current. 18 v is the maximum voltage of the bespoke product. Furthermore, it has afixed output. In addition, the height is 1.65mm. Furthermore, the product is 3.5mm wide. Its accurate length is 6.5mm. Features a 1.8 v output voltage. The package is a sort of sot-223. Whereas, the minimum operating temperature of the product is 0 °c. The product has 6.4 v of minimum input voltage. Its reference voltage is about 1.25v . It contains 3+tab pins. Has a line regulation of 0.2 %.

pdf icon
Datasheet(Technical Reference)
pdf icon
1A Dropout Positive Adjustable Or Fixed-Mode Regulator Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
