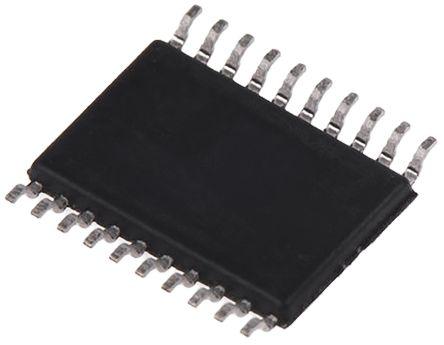

Analog Devices ADG3245BRUZ, Logic Level Translator, CMOS, -0.5 → 4.6 V, 20-Pin TSSOP

Enrgtech Part No: ET14057256
|
Manufacturer Part No:
ADG3245BRUZ
|
Manufacturer: Analog Devices

ADG3245BRUZ Analog Devices , Logic Level Translator, CMOS, -0.5 → 4.6 V, 20-Pin TSSOP

Product Information

Maximum Low Level Output Current:

25mA

Dimensions:

6.6 x 4.5 x 1.05mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

225ps

Minimum Operating Supply Voltage:

-0.5 V

Logic Function:

Translator

Logic Family:

LVCMOS, LVTTL

Height:

1.05mm

Width:

4.5mm

Length:

6.6mm

Package Type:

TSSOP

Propagation Delay Test Condition:

10pF

Checking for live stock

This is Logic Level Translator CMOS -0.5 → 4.6 V 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is ADG3245BRUZ. On the other hand, it is featured with 25ma of max. low level output current. The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The product is available in surface mount configuration. It provides up to 225ps maximum propagation delay time. While its minimum operating supply voltage is -0.5 v. The primary function of logic includes translator. The logic family is lvcmos, lvttl. In addition, the height is 1.05mm. Furthermore, the product is 4.5mm wide. Its accurate length is 6.6mm. The package is a sort of tssop. Features 10pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. It has 4.6 v maximum operating supply voltage. It has a/an cmos translation . It has a maximum operating temperature of +85 °c. It contains 20 pins. While a -25ma of maximum high level output current.

2.5 V/3.3 V, 8-Bit, 2-Port Level Translating, Bus Switch(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search ADG3245BRUZ on website for other similar products.

We accept all major payment methods for all products including ET14057256. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with ADG3245BRUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Logic Level Translators category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices ADG3245BRUZ, Logic Level Translator, CMOS, -0.5 → 4.6 V, 20-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices ADG3245BRUZ, Logic Level Translator, CMOS, -0.5 → 4.6 V, 20-Pin TSSOP.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14057256 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14057256.

Yes. We ship ADG3245BRUZ Internationally to many countries around the world.
