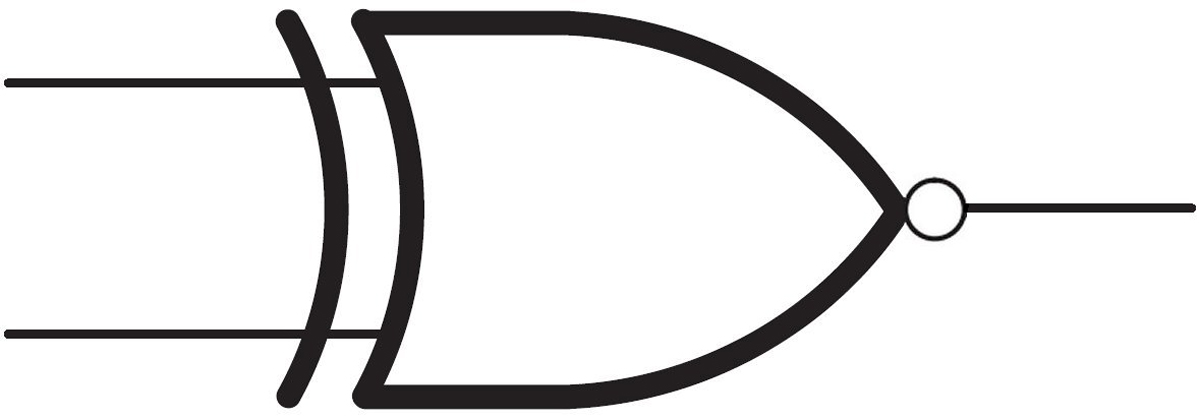

This is NXP Quad 2-Input XNOR Logic Gate 3 → 15 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is HEF4077BT,652. On the other hand, it is featured with 3.6ma of max. low level output current. While a -3.6ma of maximum high level output current. The given dimensions of the product include 8.75 x 4 x 1.45mm. The product is available in surface mount configuration. It contains 2 inputs per gate . While its minimum operating supply voltage is 3 v. The primary function of logic includes xnor. The logic family is 4000. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. Features 50pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. It provides up to 150 ns @ 5 v, 55 ns @ 15 v, 70 ns @ 10 v maximum propagation delay time. Schmitt Trigger Input - no. It carries 4 elements. It has a maximum operating temperature of +85 °c. It contains 14 pins. It has 15 v maximum operating supply voltage.
For more information please check the datasheets.
