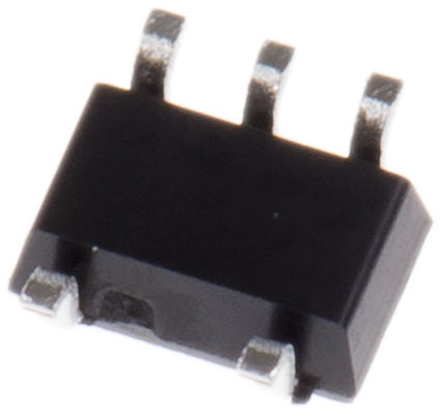

Nexperia 74AHC1G86GW,125, 2-Input XOR Logic Gate, 5-Pin TSSOP

74AHC1G86GW-125 Nexperia 74AHC1G86GW,125, 2-Input XOR Logic Gate, 5-Pin TSSOP
74AHC1G86GW,125
Nexperia

Product Information

Dimensions:
2.25 x 1.35 x 1mm
Logic Family:
AHC
Width:
1.35mm
Input Type:
CMOS
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-8mA
Maximum Propagation Delay Time @ Maximum CL:
18.5 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Single Ended
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
2.25mm
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
XOR
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
1
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 2-Input XOR Logic Gate 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74AHC1G86GW,125. The given dimensions of the product include 2.25 x 1.35 x 1mm. The logic family is ahc. Furthermore, the product is 1.35mm wide. It carries cmos input type. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 18.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has asingle ended output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.25mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes xor. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 1 elements. Features 50pf of propagation delay test condition.
