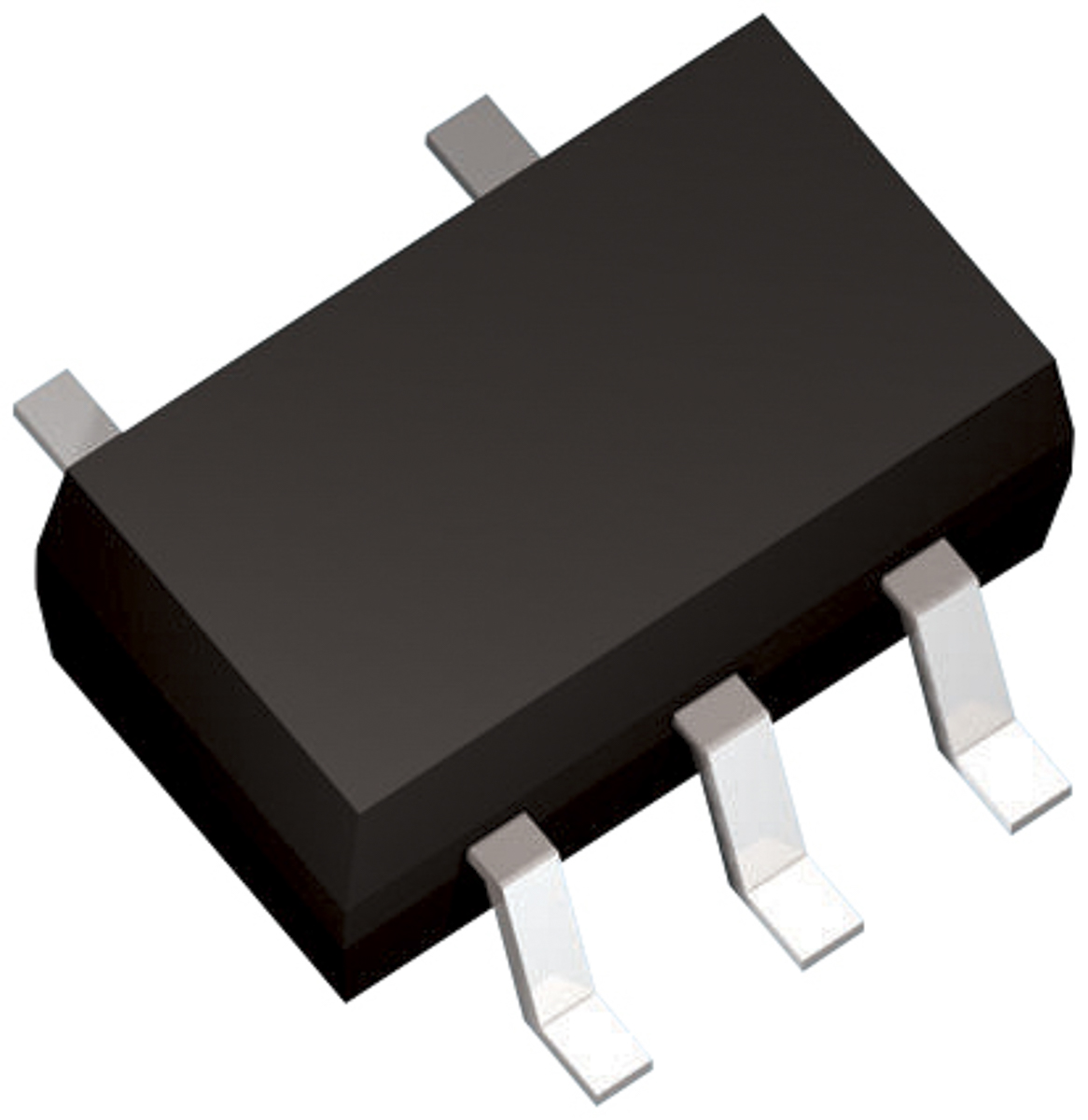

Toshiba TC7SZ86F, 2-Input XOR Logic Gate, 5-Pin SOT-25

TC7SZ86F Toshiba , 2-Input XOR Logic Gate, 5-Pin SOT-25
Toshiba

Product Information

Dimensions:
2.9 x 1.6 x 1.1mm
Width:
1.6mm
Input Type:
CMOS
Automotive Standard:
AEC-Q100
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
13.5 ns @ 15 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
CMOS
Package Type:
SOT-25
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
2.9mm
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
XOR
Height:
1.1mm
Minimum Operating Temperature:
-40 °C
Number of Elements:
1
Propagation Delay Test Condition:
15pF
RoHs Compliant
Checking for live stock

This is 2-Input XOR Logic Gate 5-Pin SOT-25 manufactured by Toshiba. The manufacturer part number is TC7SZ86F. The given dimensions of the product include 2.9 x 1.6 x 1.1mm. Furthermore, the product is 1.6mm wide. It carries cmos input type. The product complies with automotive standard - aec-q100. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 13.5 ns @ 15 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has acmos output. The package is a sort of sot-25. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.9mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes xor. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -40 °c. It carries 1 elements. Features 15pf of propagation delay test condition.
