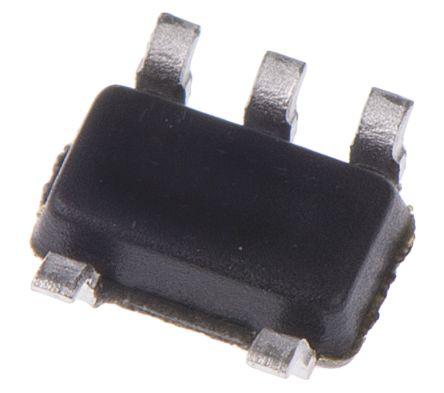

This is 2-Input NOR Logic Gate 4.5 → 5.5 V 5-Pin SOT-23 manufactured by Texas Instruments. The manufacturer part number is 74AHCT1G02DBVR. The given dimensions of the product include 2.9 x 1.6 x 1.15mm. The logic family is ahct. Furthermore, the product is 1.6mm wide. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 7.5 ns @ 5 v maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. The package is a sort of sot-23. It has a maximum operating temperature of +85 °c. It contains 2 inputs per gate . Its accurate length is 2.9mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nor. In addition, the height is 1.15mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 1 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
