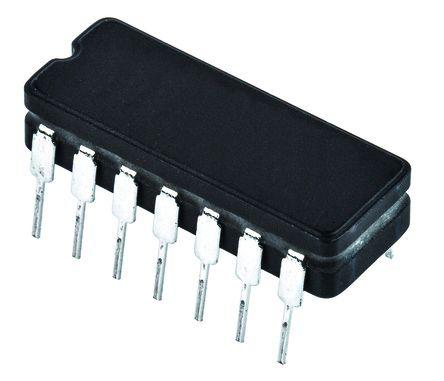

Texas Instruments SNJ54HC32J, Quad 2-Input OR Logic Gate, 2 → 6 V, 14-Pin CDIP

SNJ54HC32J Texas Instruments , Quad 2-Input OR Logic Gate, 2 → 6 V, 14-Pin CDIP
SNJ54HC32J
Texas Instruments

Product Information

Dimensions:
19.94 x 7.62 x 3.56mm
Logic Family:
HC
Width:
7.62mm
Input Type:
CMOS
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ Maximum CL:
25 ns @ 6 V
Minimum Operating Supply Voltage:
2 V
Output Type:
CMOS
Package Type:
CDIP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
19.94mm
Pin Count:
14
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Through Hole
Logic Function:
OR
Height:
3.56mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
50pF
RoHS Status:
ROHS3 Compliant
Series:
*
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
RoHs Compliant
Checking for live stock

This is Quad 2-Input OR Logic Gate 2 → 6 V 14-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is SNJ54HC32J. The given dimensions of the product include 19.94 x 7.62 x 3.56mm. The logic family is hc. Furthermore, the product is 7.62mm wide. It carries cmos input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. It provides up to 25 ns @ 6 v maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acmos output. The package is a sort of cdip. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 19.94mm. It contains 14 pins. It has 6 v maximum operating supply voltage. The product is available in through hole configuration. The primary function of logic includes or. In addition, the height is 3.56mm. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - no. It carries 4 elements. Features 50pf of propagation delay test condition. The product is rohs3 compliant. It is shipped in tube package . Its typical moisture sensitivity level is not applicable.
