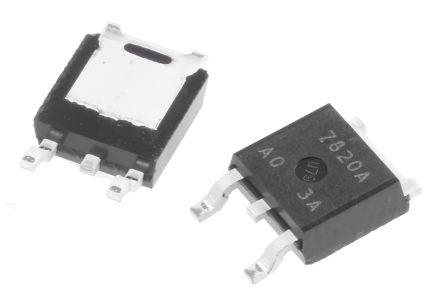

New Japan Radio NJM7820DL1A-TE1 Linear Voltage Regulator, 1.5A, 20 V, TO-252 3-Pin

NJM7820DL1A-TE1 New Japan Radio Linear Voltage Regulator, 1.5A, 20 V, TO-252 3-Pin
New Japan Radio

Product Information

Polarity:
Positive
Dimensions:
6.54 x 6.04 x 2.29mm
Width:
6.04mm
Height:
2.29mm
Load Regulation:
400 mV
Output Type:
Fixed
Package Type:
TO-252
Maximum Operating Temperature:
+85 °C
Quiescent Current:
4.5mA
Number of Outputs:
1
Line Regulation:
400 mV
Length:
6.54mm
Pin Count:
3
Mounting Type:
Surface Mount
Series:
NJM78xx
Maximum Input Voltage:
40 V
Output Voltage:
20 V
Minimum Operating Temperature:
-40 °C
Power Rating:
1W
Maximum Output Current:
1.5A
RoHs Compliant
Checking for live stock

This is Linear Voltage Regulator 1.5A 20 V TO-252 3-Pin manufactured by New Japan Radio. The manufacturer part number is NJM7820DL1A-TE1. While providing positive polarity. The given dimensions of the product include 6.54 x 6.04 x 2.29mm. Furthermore, the product is 6.04mm wide. In addition, the height is 2.29mm. Load Regulation - 400 mv. Furthermore, it has afixed output. The package is a sort of to-252. It has a maximum operating temperature of +85 °c. Supplied with 4.5ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 400 mv. Its accurate length is 6.54mm. It contains 3 pins. The product is available in surface mount configuration. The product njm78xx, is a highly preferred choice for users. 40 v is the maximum voltage of the bespoke product. Features a 20 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Feature 1w of power rating. Featuring 1.5a of maximum output current.

pdf icon
NJM7800 3-TERMINAL POSITIVE VOLTAGE REGULATOR Data Sheet(Technical Reference)
