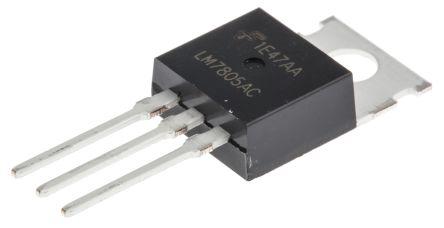

Fairchild Semiconductor LM7805ACT Linear Voltage Regulator, 1A, 5 V, TO-220 3-Pin

LM7805ACT Fairchild Semiconductor Linear Voltage Regulator, 1A, 5 V, TO-220 3-Pin
Fairchild Semiconductor

Product Information

Polarity:
Positive
Dimensions:
10.67 x 4.83 x 16.51mm
Width:
4.83mm
Dropout Voltage Measurement Current:
1 A
Typical Dropout Voltage @ Current:
2 V @ 1 A
Load Regulation:
100 mV
Output Type:
Fixed
Package Type:
TO-220
Maximum Operating Temperature:
+125 °C
Quiescent Current:
6mA
Number of Outputs:
1
Line Regulation:
50 mV
Length:
10.67mm
Pin Count:
3
Mounting Type:
Through Hole
Series:
LM78xx
Height:
16.51mm
Output Voltage:
5 V
Minimum Operating Temperature:
0 °C
Maximum Output Current:
1A
Maximum Input Voltage:
35 V
RoHs Compliant
Checking for live stock

This is Linear Voltage Regulator 1A 5 V TO-220 3-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is LM7805ACT. While providing positive polarity. The given dimensions of the product include 10.67 x 4.83 x 16.51mm. Furthermore, the product is 4.83mm wide. It has a dropout voltage measurement current of 1 a . It has a 2 v @ 1 a typical dropout voltage @ current . Load Regulation - 100 mv. Furthermore, it has afixed output. The package is a sort of to-220. It has a maximum operating temperature of +125 °c. Supplied with 6ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 50 mv. Its accurate length is 10.67mm. It contains 3 pins. The product is available in through hole configuration. The product lm78xx, is a highly preferred choice for users. In addition, the height is 16.51mm. Features a 5 v output voltage. Whereas, the minimum operating temperature of the product is 0 °c. Featuring 1a of maximum output current. 35 v is the maximum voltage of the bespoke product.

pdf icon
LM78XX / LM78XXA, 3-Terminal 1A Positive Voltage Regulator Data Sheet(Technical Reference)
