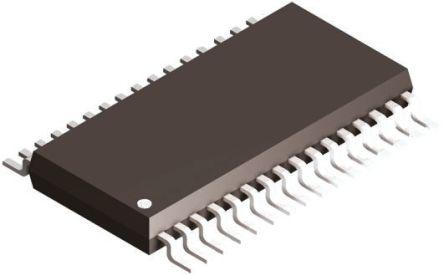

Maxim MAX3209EEUU+, Multichannel Line Transceiver, IEC 1000-4-2 6-TX 10-RX, 3 → 5.5 V, 38-Pin TSSOP

MAX3209EEUU- Maxim MAX3209EEUU+, Multichannel Line Transceiver, IEC 1000-4-2 6-TX 10-RX, 3 → 5.5 V, 38-Pin TSSOP
Maxim

Product Information

Receiver Signal Type:
Single Ended
Maximum Operating Temperature:
+85 °C
Dimensions:
9.8 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Transmitters:
6
Transmitter Signal Type:
Single Ended
Height:
0.95mm
Typical Single Supply Voltage:
3 → 5.5 V
Width:
4.5mm
Length:
9.8mm
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Data Rate:
460kbps
Number of Receivers per Line:
1
Number of Drivers per Line:
1
Number of Receivers:
10
Interface Standards:
IEC 1000-4-2
Pin Count:
38
RoHs Compliant
Checking for live stock

This is Multichannel Line Transceiver IEC 1000-4-2 6-TX 10-RX 3 → 5.5 V 38-Pin TSSOP manufactured by Maxim. The manufacturer part number is MAX3209EEUU+. In addition, it has single ended type receiver signal . It has a maximum operating temperature of +85 °c. The given dimensions of the product include 9.8 x 4.5 x 0.95mm. The product is available in surface mount configuration. It is a type of single power supply. It includes 6 transmitters . Moreover, it exhibits single ended type transmitter signal . In addition, the height is 0.95mm. It has a typical single supply voltage of 3 → 5.5 v. Furthermore, the product is 4.5mm wide. Its accurate length is 9.8mm. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximised data speed rate of 460kbps. Furthermore, it has 1 number of receivers per line . Whereas, it has 1 dedicated drivers per line . It contains 10 receivers . It complies with iec 1000-4-2 interface standards . It contains 38 pins.

pdf icon
MAX3209E, 15kV ESD-Protected, 12V, Dual RS-232 Serial Port with Low-Power Standby for Motherboards/Desktops Data Sheet(Technical Reference)
