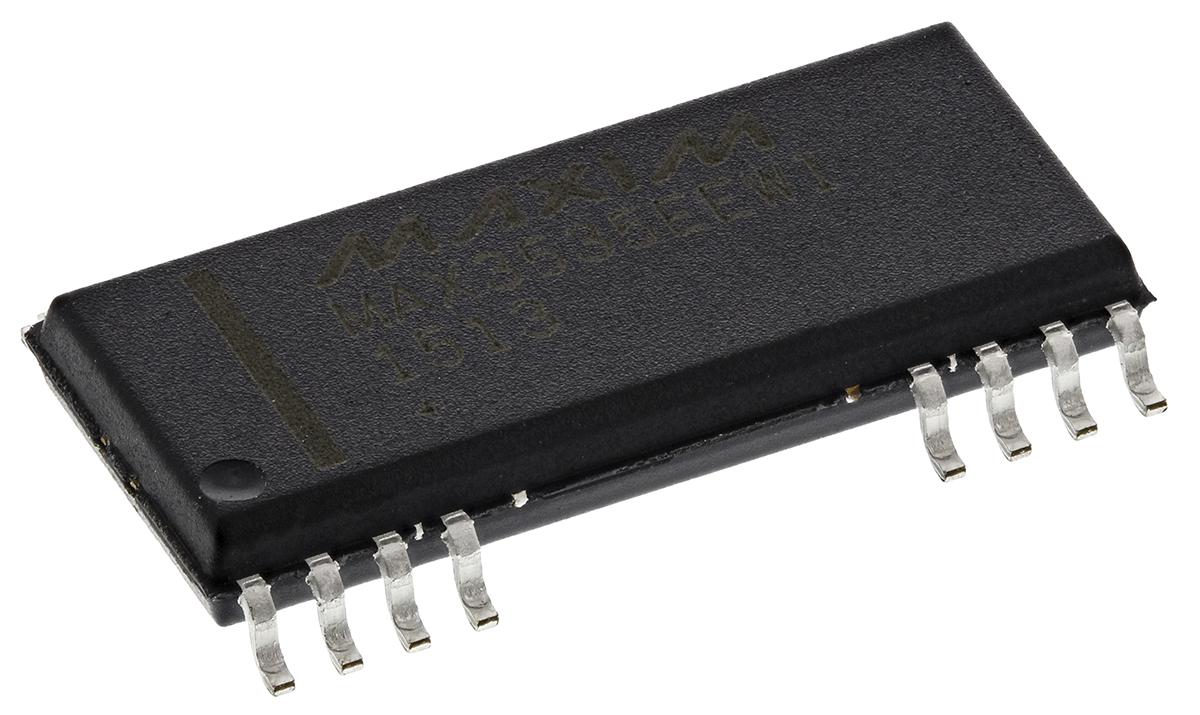

Maxim MAX3535EEWI+, Line Transceiver, RS-422, RS-485, 3 → 5.5 V, 28-Pin SOIC

MAX3535EEWI- Maxim MAX3535EEWI+, Line Transceiver, RS-422, RS-485, 3 → 5.5 V, 28-Pin SOIC
MAX3535EEWI+
Maxim Integrated

Product Information

Dimensions:
18.1 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Package Type:
SOIC
Input Type:
Differential
Number of Transmitters:
1
Pin Count:
28
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Duplex:
Full
Number of Drivers/Receivers:
1/1
Receiver Hysteresis:
30 mV
Operating Temperature:
-40°C ~ 85°C
Package / Case:
28-SOIC (0.295", 7.50mm Width), 16 Leads
Type:
Transceiver
REACH Status:
REACH Unaffected
Data Rate:
1Mbps
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
44 Weeks
Protocol:
RS422, RS485
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
28-SOIC
Voltage - Supply:
3V ~ 5.5V
Base Product Number:
MAX3535
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Maxim Line Transceiver RS-422 RS-485 3 → 5.5 V 28-Pin SOIC manufactured by Maxim Integrated. The manufacturer part number is MAX3535EEWI+. The given dimensions of the product include 18.1 x 7.6 x 2.35mm. The product is available in surface mount configuration. The package is a sort of soic. It carries differential input type. It includes 1 transmitters . It contains 28 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is full. It also includes 1/1. Features 30 mv of receiver hysteresis. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 28-soic (0.295", 7.50mm width), 16 leads. It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 1mbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 44 weeks standard lead time. The product features a rs422, rs485 protocol. 28-soic is the supplier device package value. It has optimum voltage supply of 3v ~ 5.5v. Moreover, it corresponds to max3535, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RS-485/RS-422 Transceivers with ESD Protection Datasheet(Technical Reference)
pdf icon
MAX3058/MAX3059, 5V, 1Mbps, Low Supply Current CAN Transceivers(Technical Reference)
pdf icon
MAX3535E/MXL1535E +3V to +5V, 2500VRMS Isolated RS-485/RS-422 Transceivers with ±15kV ESD Protection Data Sheet(Technical Reference)
pdf icon
Maxim Integrated RoHS3 Cert(Environmental Information)
pdf icon
Red Phosphorous Certificate(Environmental Information)
pdf icon
Maxim Integrated REACH211(Environmental Information)
pdf icon
Part Numbering System(Part Numbering Guide)
pdf icon
MAX3535E, MXL1535E(Datasheets)
pdf icon
Considerations for Selecting an RS-485 Transceiver in Electronic Power Meters(Mfg Application Notes)
pdf icon
Introduction to Programmable Logic Controllers (PLCs) and the Operational Function of Main System Modules(Mfg Application Notes)
