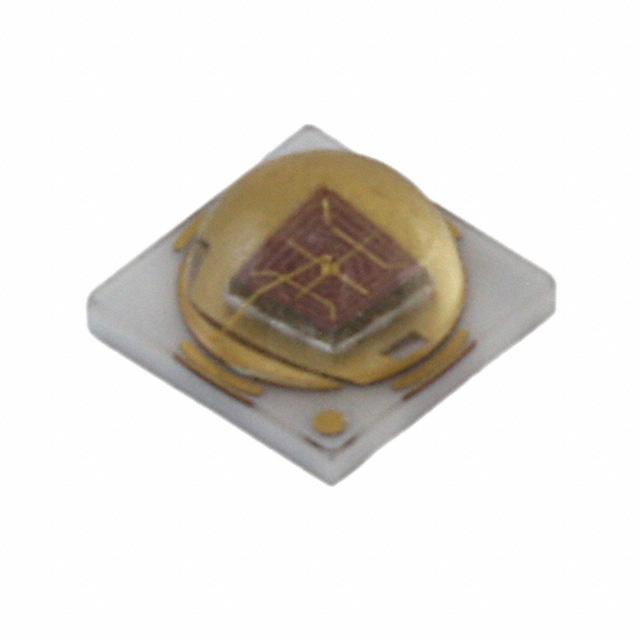

Seoul Semiconductor Inc. SZR05A0A

SZR05A0A Seoul Semiconductor Inc.
Seoul Semiconductor Inc.

Product Information

HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Package / Case:
1414 (3535 Metric)
Current - Test:
350mA
Current - Max:
700mA
Height - Seated (Max):
0.085" (2.15mm)
Viewing Angle:
123°
Thermal Resistance of Package:
7°C/W
Luminous Flux @ Current/Temperature:
55lm (Typ)
Package:
Tape & Reel (TR)
Size / Dimension:
0.138" L x 0.138" W (3.50mm x 3.50mm)
Temperature - Test:
25°C
Voltage - Forward (Vf) (Typ):
2.4V
Moisture Sensitivity Level (MSL):
2A (4 Weeks)
Mounting Type:
Surface Mount
Color:
Red
Series:
Z Power
Supplier Device Package:
SMD
Lumens/Watt @ Current - Test:
65 lm/W
Wavelength:
625nm (618nm ~ 632nm)
ECCN:
EAR99
Checking for live stock

This is manufactured by Seoul Semiconductor Inc.. The manufacturer part number is SZR05A0A. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. Moreover, the product comes in 1414 (3535 metric). The given current test of the product is [Current -Test]. The given maximum current is 700ma. It has the maximum seated height of 0.085" (2.15mm). Furthermore, 123° is the viewing angle of the product. However, the package's thermal resistance is 7°c/w. The luminous flux of the product is 55lm (typ). It is shipped in tape & reel (tr) package . The product's diameters include 0.138" l x 0.138" w (3.50mm x 3.50mm). The product's test temperature is 25°c. The typical forward voltage (Vf) of the product is 2.4v. Its typical moisture sensitivity level is 2a (4 weeks). The product is available in surface mount configuration. It has a classic red colour. The product z power, is a highly preferred choice for users. smd is the supplier device package value. 65 lm/w of watts at test current. It has a typical wavelength of 625nm (618nm ~ 632nm). The product is designated with the ear99 code number.
