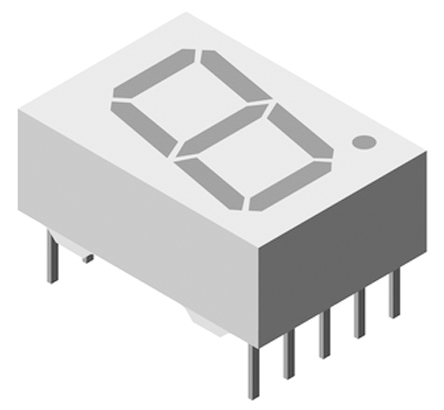

Vishay TDSO5160 7-Segment LED Display, CC Red-Orange 5 mcd RH DP 13mm

TDSO5160 Vishay 7-Segment LED Display, CC Red-Orange 5 mcd RH DP 13mm
Vishay

Product Information

Dominant Wavelength:
625 nm
Forward Current:
25mA
Common Connection:
Cathode
Character Width:
7.4mm
Forward Voltage:
2 V
Luminous Intensity:
5 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
13mm
Number of Characters:
1
External Dimensions:
7 x 17.5mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Segments:
7
Power Dissipation:
550mW
Minimum Operating Temperature:
-40°C
LED Colours:
Red-Orange
Decimal Orientation:
Right Side
External Height:
7mm
External Width:
17.5mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Red-Orange 5 mcd RH DP 13mm manufactured by Vishay. The manufacturer part number is TDSO5160. It has a dominant wavelength of 625 nm. It features 25ma forward current. It has a common cathode connection . In addition, it has about 7.4mm character width . The forward voltage is 2 v. It has 5 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 13mm character in height . Consists of 1 characters. Features 7 x 17.5mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. It includes 7 segments . It has about 550mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red-orange colours. Its decimal orientation is to the right side . While its external height is 7mm. The product is 17.5mm wide.

pdf icon
Datasheet(Technical Reference)
pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TDSO5160 on website for other similar products.
We accept all major payment methods for all products including ET16909904. Please check your shopping cart at the time of order.
You can order Vishay brand products with TDSO5160 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LED Displays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay TDSO5160 7-Segment LED Display, CC Red-Orange 5 mcd RH DP 13mm. You can also check on our website or by contacting our customer support team for further order details on Vishay TDSO5160 7-Segment LED Display, CC Red-Orange 5 mcd RH DP 13mm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16909904 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16909904.
Yes. We ship TDSO5160 Internationally to many countries around the world.
