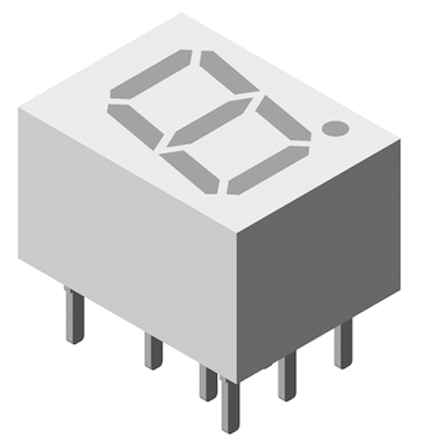

Vishay TDSR0760 7-Segment LED Display, CC Red 2.2 mcd RH DP 10mm

TDSR0760 Vishay  7-Segment LED Display, CC Red 2.2 mcd RH DP 10mm
Vishay

Product Information

Dominant Wavelength:
640 nm
Forward Current:
10mA
Common Connection:
Cathode
Character Width:
6mm
Forward Voltage:
1.8 V
Luminous Intensity:
2.2 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
10mm
Number of Characters:
1
External Dimensions:
6 x 9.9mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Segments:
7
Power Dissipation:
185mW
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
6mm
External Width:
9.9mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Red 2.2 mcd RH DP 10mm manufactured by Vishay. The manufacturer part number is TDSR0760. It has a dominant wavelength of 640 nm. It features 10ma forward current. It has a common cathode connection . In addition, it has about 6mm character width . The forward voltage is 1.8 v. It has 2.2 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 10mm character in height . Consists of 1 characters. Features 6 x 9.9mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. It includes 7 segments . It has about 185mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 6mm. The product is 9.9mm wide.

pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)
pdf icon
TDSR0750, TDSR0760 High Intensity Red Low Current Seven Segment Display Data Sheet(Technical Reference)
