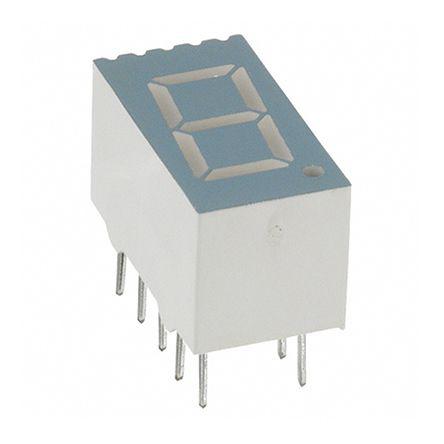

Lumex LDS-C322RI 7-Segment LED Display, CC Green 2500 mcd RH DP 9.1mm

LDS-C322RI Lumex 7-Segment LED Display, CC Green 2500 mcd RH DP 9.1mm
Lumex

Product Information

Forward Current:
10mA
Common Connection:
Cathode
Character Width:
4.8mm
External Depth:
8.5mm
Forward Voltage:
2.6 V
Luminous Intensity:
2500 mcd
Maximum Operating Temperature:
85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Dimensions:
9.1 x 4.8mm
Character Height:
9.1mm
Number of Segments:
7
External Dimensions:
14 x 7.5 x 8.5mm
Display Type:
7-Segment
Mounting Type:
PCB Mounted
Number of Characters:
1
Power Dissipation:
105mW
Minimum Operating Temperature:
-40°C
LED Colours:
Green
Decimal Orientation:
Right Side
External Height:
14mm
External Width:
7.5mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Green 2500 mcd RH DP 9.1mm manufactured by Lumex. The manufacturer part number is LDS-C322RI. It features 10ma forward current. It has a common cathode connection . In addition, it has about 4.8mm character width . It has an external depth of 8.5mm. The forward voltage is 2.6 v. It has 2500 mcd of luminous intensity. It has a maximum operating temperature of 85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. Its character dimensions are about 9.1 x 4.8mm . It has a standard 9.1mm character in height . It includes 7 segments . Features 14 x 7.5 x 8.5mm external caliber. It features a remarkable 7-segment display. The product is available in pcb mounted configuration. Consists of 1 characters. It has about 105mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic green colours. Its decimal orientation is to the right side . While its external height is 14mm. The product is 7.5mm wide.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship LDS-C322RI Internationally to many countries around the world.
Yes. You can also search LDS-C322RI on website for other similar products.
We accept all major payment methods for all products including ET14115783. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14115783 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Lumex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14115783.
You can order Lumex brand products with LDS-C322RI directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LED Displays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Lumex LDS-C322RI 7-Segment LED Display, CC Green 2500 mcd RH DP 9.1mm. You can also check on our website or by contacting our customer support team for further order details on Lumex LDS-C322RI 7-Segment LED Display, CC Green 2500 mcd RH DP 9.1mm.
