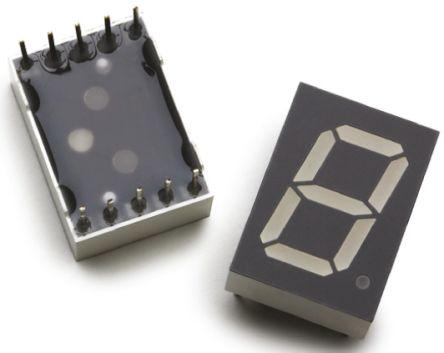

Broadcom HDSP-C5A1 7-Segment LED Display, CA Red 16 mcd RH DP 13.1mm

HDSP-C5A1 Broadcom  7-Segment LED Display, CA Red 16 mcd RH DP 13.1mm
Broadcom

Product Information

External Dimensions:
17.6 x 12.4 x 6.9mm
Display Type:
7-Segment
Colour of Face:
Grey
Mounting Type:
Through Hole
Operating Temperature Range:
-40 → +85°C
Common Connection:
Anode
Character Dimensions:
13.1 x 7.62mm
Number of Segments:
7
Character Height:
13.1mm
External Depth:
6.9mm
Character Width:
7.62mm
Luminous Intensity:
16 mcd
Number of Characters:
1
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
17.6mm
External Width:
12.4mm
Maximum Operating Temperature:
+85°C
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CA Red 16 mcd RH DP 13.1mm manufactured by Broadcom. The manufacturer part number is HDSP-C5A1. Features 17.6 x 12.4 x 6.9mm external caliber. It features a remarkable 7-segment display. It is created with a grey colour face . The product is available in through hole configuration. The product has -40 → +85°c of operating temperature range. It has a common anode connection . Its character dimensions are about 13.1 x 7.62mm . It includes 7 segments . It has a standard 13.1mm character in height . It has an external depth of 6.9mm. In addition, it has about 7.62mm character width . It has 16 mcd of luminous intensity. Consists of 1 characters. Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 17.6mm. The product is 12.4mm wide. It has a maximum operating temperature of +85°c.

pdf icon
HDSP–C5x1/C5x3 0.52” Single Digit PCB Based LED Display Datasheet(Technical Reference)
