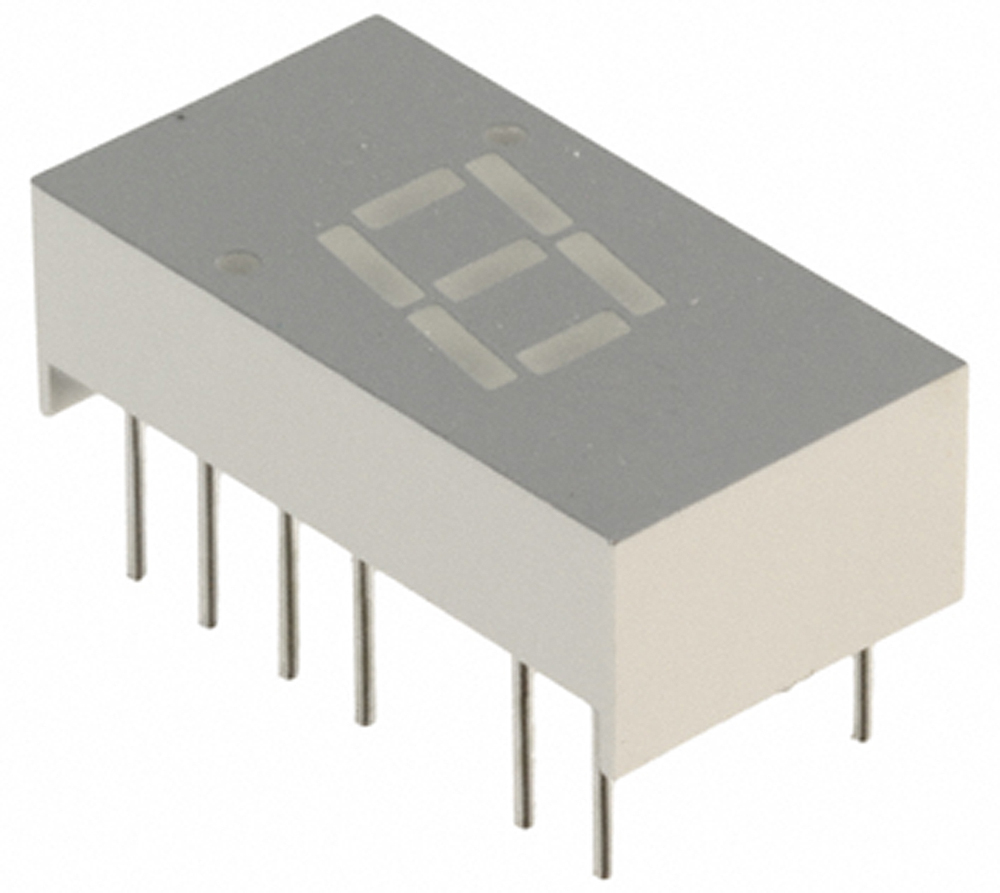

Kingbright SA04-11CGKWA

SA04-11CGKWA Kingbright
Kingbright

Product Information

Dominant Wavelength:
570 nm
Forward Current:
30mA
Common Connection:
Anode
Character Width:
5.6mm
External Depth:
5.1mm
Forward Voltage:
2.1 V
Luminous Intensity:
30 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
10.2mm
Number of Segments:
7
External Dimensions:
9.8 x 18.8 x 5.1mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Characters:
1
Power Dissipation:
75mW
Minimum Operating Temperature:
-40°C
LED Colours:
Green
Decimal Orientation:
Right Side
External Height:
18.8mm
External Width:
9.8mm
HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Millicandela Rating:
30mcd
Package / Case:
14-DIP (0.295", 7.50mm)
Current - Test:
20mA
REACH Status:
REACH Unaffected
edacadModel:
SA04-11CGKWA Models
Wavelength - Peak:
574nm
edacadModelUrl:
/en/models/4098581
Manufacturer:
Kingbright
Digit/Alpha Size:
0.40" (10.16mm)
Common Pin:
Common Anode
Size / Dimension:
0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Power Dissipation (Max):
75mW
Number of Characters:
1
Voltage - Forward (Vf) (Typ):
2.1V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Display Type:
7-Segment
Color:
Green
Series:
-
Packaging:
Tube
Base Product Number:
SA04-11
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Kingbright. The manufacturer part number is SA04-11CGKWA. It has a dominant wavelength of 570 nm. It features 30ma forward current. It has a common anode connection . In addition, it has about 5.6mm character width . It has an external depth of 5.1mm. The forward voltage is 2.1 v. It has 30 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 10.2mm character in height . It includes 7 segments . Features 9.8 x 18.8 x 5.1mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. Consists of 1 characters. It has about 75mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic green colours. Its decimal orientation is to the right side . While its external height is 18.8mm. The product is 9.8mm wide. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. On the other hand, 30mcd is the millicandela rating of the bespoke product. Moreover, the product comes in 14-dip (0.295", 7.50mm). The given current test of the product is [Current -Test]. In addition, it is reach unaffected. The peak wavelength of the product is 574nm. The kingbright's product offers user-desired applications. It has a [Digital/Alpha Size] of digital/alpha size. The common anode is the common pin of the product. The product's diameters include 0.738" h x 0.386" w x 0.200" d (18.75mm x 9.80mm x 5.08mm). The product carries maximum power dissipation 75mw. The typical forward voltage (Vf) of the product is 2.1v. Its typical moisture sensitivity level is 1 (unlimited). It has a classic green colour. In addition, tube is the available packaging type of the product. Moreover, it corresponds to sa04-11, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
SA04-11CGKWA(Datasheets)
pdf icon
Kingbright RoHS3(Environmental Information)
pdf icon
Kingbright REACH(Environmental Information)
pdf icon
Label Change 01/Oct/2016(PCN Packaging)
