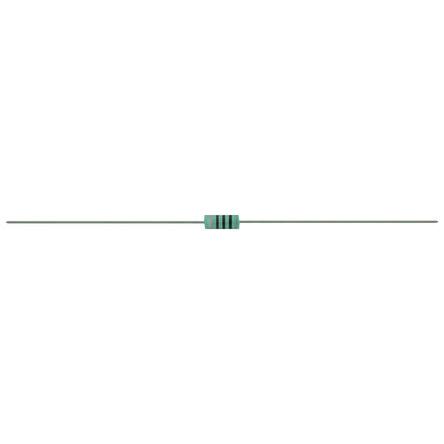

Vishay 330 μH ±10% Ferrite Leaded Inductor, Max SRF:7MHz, Q:30, 45mA Idc, 28Ω Rdc IM

IM02EB331K Vishay 330 μH ±10% Ferrite Leaded Inductor, Max SRF:7MHz, Q:30, 45mA Idc, 28Ω Rdc IM
Vishay

Product Information

Diameter:
2.67mm
Dimensions:
2.67 (Dia.) x 6.60mm
Lead Diameter:
0.54mm
Maximum DC Resistance:
28Ω
Maximum DC Current:
45mA
Series:
IM
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
30
Height:
6.6mm
Length:
48mm
Core Material:
Ferrite
Inductance:
330 μH
Maximum Self Resonant Frequency:
7MHz
Mounting Type:
Axial
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Axial Leaded
RoHs Compliant
Checking for live stock

This is 330 μH ±10% Ferrite Leaded Inductor Max SRF:7MHz Q:30 45mA Idc 28Ω Rdc IM manufactured by Vishay. The manufacturer part number is IM02EB331K. Its diameter is 2.67mm. The given dimensions of the product include 2.67 (dia.) x 6.60mm. Furthermore, the lead has 0.54mm diameter. It allows up to 28ω maximum DC resistance. While it carries 45ma of maximum DC current. The product im, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 30 quality factors. In addition, the height is 6.6mm. Its accurate length is 48mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 330 μh inductance value. It provides 7mhz of maximum self-resonant frequency. The product is available in axial configuration. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a axial leaded type.
