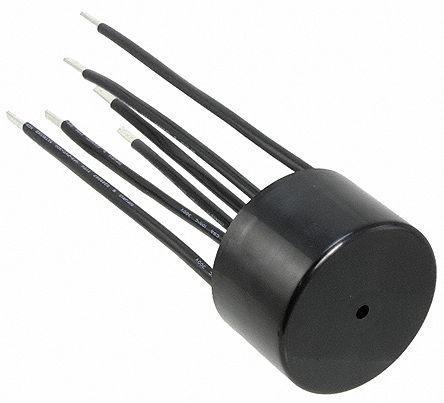

Schaffner 2.5 mH -30 → +50% Common Mode Choke, 25A Idc, 6.4mΩ Rdc RD

RD8137-25-2M5 Schaffner 2.5 mH -30 → +50% Common Mode Choke, 25A Idc, 6.4mΩ Rdc RD
Schaffner

Product Information

Diameter:
80mm
Dimensions:
80 (Dia.) x 50mm
Lead Diameter:
2.4mm
Maximum DC Resistance:
6.4mΩ
Maximum DC Current:
25A
Series:
RD
Minimum Operating Temperature:
-25°C
Height:
50mm
Inductance:
2.5 mH
Mounting Type:
Lead Wire, Through Hole
Maximum Operating Temperature:
+110°C
Tolerance:
-30 → +50%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 2.5 mH -30 → +50% Common Mode Choke 25A Idc 6.4mΩ Rdc RD manufactured by Schaffner. The manufacturer part number is RD8137-25-2M5. Its diameter is 80mm. The given dimensions of the product include 80 (dia.) x 50mm. Furthermore, the lead has 2.4mm diameter. It allows up to 6.4mω maximum DC resistance. While it carries 25a of maximum DC current. The product rd, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. In addition, the height is 50mm. The product has a 2.5 mh inductance value. The product is available in lead wire, through hole configuration. It has a maximum operating temperature of +110°c. It features -30 → +50% of tolerance value. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)
pdf icon
Application Note: Electromagnetic Compatibility of Lighting Equipment(Technical Reference)
