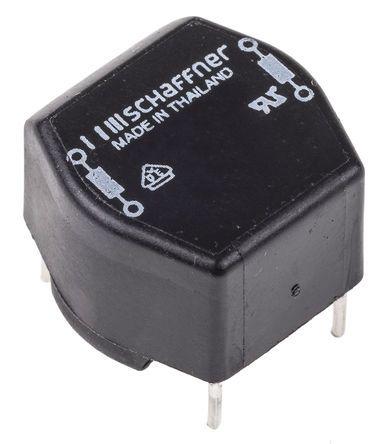

Schaffner 15 mH -30 → +50% Current Compensated Choke, 1A Idc, 375mΩ Rdc RN

RN114-1-02 Schaffner 15 mH -30 → +50% Current Compensated Choke, 1A Idc, 375mΩ Rdc RN
RN114-1-02
RN114-1-02
ET16833251
ET16833251
Schaffner

Product Information

Maximum DC Resistance:
375mΩ
Dimensions:
22.5 x 21.5 x 13.2mm
Lead Diameter:
0.8mm
Terminal Type:
Radial Leaded
Maximum DC Current:
1A
Series:
RN
Minimum Operating Temperature:
-40°C
Length:
22.5mm
Height:
13.2mm
Depth:
21.5mm
Inductance:
15 mH
Mounting Type:
Through Hole
Lead Pitch:
12.5 mm, 20.1 mm
Maximum Operating Temperature:
+125°C
Tolerance:
-30 → +50%
RoHs Compliant
Checking for live stock

This is 15 mH -30 → +50% Current Compensated Choke 1A Idc 375mΩ Rdc RN manufactured by Schaffner. The manufacturer part number is RN114-1-02. It allows up to 375mω maximum DC resistance. The given dimensions of the product include 22.5 x 21.5 x 13.2mm. Furthermore, the lead has 0.8mm diameter. The terminal is a radial leaded type. While it carries 1a of maximum DC current. The product rn, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 22.5mm. In addition, the height is 13.2mm. The product comes in 21.5mm depth. The product has a 15 mh inductance value. The product is available in through hole configuration. The lead features 12.5 mm, 20.1 mm pitch. It has a maximum operating temperature of +125°c. It features -30 → +50% of tolerance value.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search RN114-1-02 on website for other similar products.
We accept all major payment methods for all products including ET16833251. Please check your shopping cart at the time of order.
You can order Schaffner brand products with RN114-1-02 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner 15 mH -30 → +50% Current Compensated Choke, 1A Idc, 375mΩ Rdc RN. You can also check on our website or by contacting our customer support team for further order details on Schaffner 15 mH -30 → +50% Current Compensated Choke, 1A Idc, 375mΩ Rdc RN.
