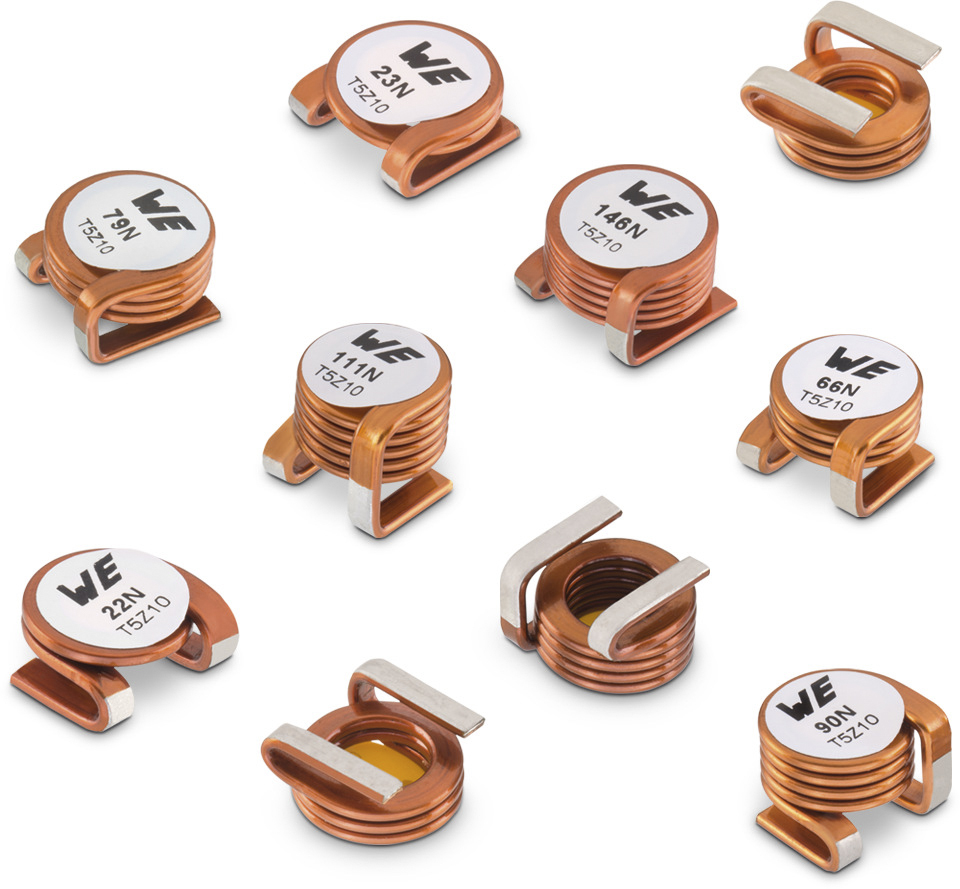

Wurth 22 nH ±20% Power Inductor, Max SRF:867MHz, Q:280, 40A Idc, 550μΩ Rdc WE-AC HC

7449152022 Wurth 22 nH ±20% Power Inductor, Max SRF:867MHz, Q:280, 40A Idc, 550μΩ Rdc WE-AC HC
Wurth Elektronik

Product Information

Maximum DC Resistance:
0.55mΩ
Dimensions:
11.5 x 12 x 6.6mm
Lead Diameter:
2.5 (Width)mm
Maximum DC Current:
40A
Series:
WE-AC HC
Minimum Operating Temperature:
-40°C
Minimum Quality Factor:
280
Length:
11.5mm
Height:
6.6mm
Depth:
12mm
Inductance:
0.022 μH
Maximum Self Resonant Frequency:
867MHz
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Terminal Type:
Solder
RoHs Compliant
Checking for live stock

This is Wurth 22 nH ±20% Power Inductor Max SRF:867MHz Q:280 40A Idc 550μΩ Rdc WE-AC HC manufactured by Wurth Elektronik. The manufacturer part number is 7449152022. It allows up to 0.55mω maximum DC resistance. The given dimensions of the product include 11.5 x 12 x 6.6mm. Furthermore, the lead has 2.5 (width)mm diameter. While it carries 40a of maximum DC current. The product we-ac hc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has minimum 280 quality factors. Its accurate length is 11.5mm. In addition, the height is 6.6mm. The product comes in 12mm depth. The product has a 0.022 μh inductance value. It provides 867mhz of maximum self-resonant frequency. The product is available in surface mount configuration. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. The terminal is a solder type.
