Name: RS514-2-02, Schaffner
Brand: Schaffner
SKU: ET16768150
Price: 3.09 GBP
Availability: PreOrder

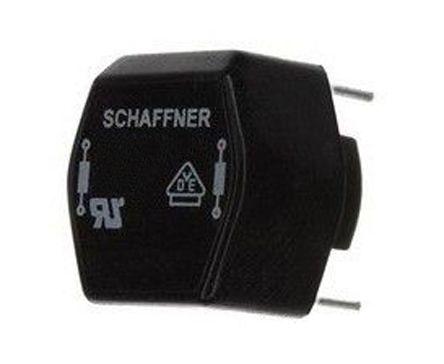

RS514-2-02 Schaffner 150 (Dual Load) μH, 38 (Dual Load) μH Common Mode Choke, Max SRF:10 (Single Load) MHz, 16 (Dual Load) MHz

(0)

Product Information

Maximum DC Resistance:

50 (Dual Load) mΩ, 100 (Single Load) mΩ

Dimensions:

21.5 x 22.5 x 13.2mm

Lead Diameter:

0.8mm

Maximum DC Current:

Series:

Minimum Operating Temperature:

-40°C

Length:

21.5mm

Height:

13.2mm

Depth:

22.5mm

Inductance:

38 (Dual Load) μH, 150 (Dual Load) μH

Maximum Self Resonant Frequency:

10 (Single Load) MHz, 16 (Dual Load) MHz

Mounting Type:

Radial

Checking for live stock

This is 150 (Dual Load) μH 38 (Dual Load) μH Common Mode Choke Max SRF:10 (Single Load) MHz 16 (Dual Load) MHz manufactured by Schaffner. The manufacturer part number is RS514-2-02. It allows up to 50 (dual load) mω, 100 (single load) mω maximum DC resistance. The given dimensions of the product include 21.5 x 22.5 x 13.2mm. Furthermore, the lead has 0.8mm diameter. While it carries 2a of maximum DC current. The product rs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 21.5mm. In addition, the height is 13.2mm. The product comes in 22.5mm depth. The product has a 38 (dual load) μh, 150 (dual load) μh inductance value. It provides 10 (single load) mhz, 16 (dual load) mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 20.1mm pitch. It has a maximum operating temperature of +125°c. The terminal is a radial leaded type.

Datasheet(Technical Reference)

Schaffner EMC/EMI Catalogue(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search RS514-2-02 on website for other similar products.

We accept all major payment methods for all products including ET16768150. Please check your shopping cart at the time of order.

You can order Schaffner brand products with RS514-2-02 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Leaded Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Schaffner 150 (Dual Load) μH, 38 (Dual Load) μH Common Mode Choke, Max SRF:10 (Single Load) MHz, 16 (Dual Load) MHz. You can also check on our website or by contacting our customer support team for further order details on Schaffner 150 (Dual Load) μH, 38 (Dual Load) μH Common Mode Choke, Max SRF:10 (Single Load) MHz, 16 (Dual Load) MHz.

Schaffner 150 (Dual Load) μH, 38 (Dual Load) μH Common Mode Choke, Max SRF:10 (Single Load) MHz, 16 (Dual Load) MHz

RS514-2-02
