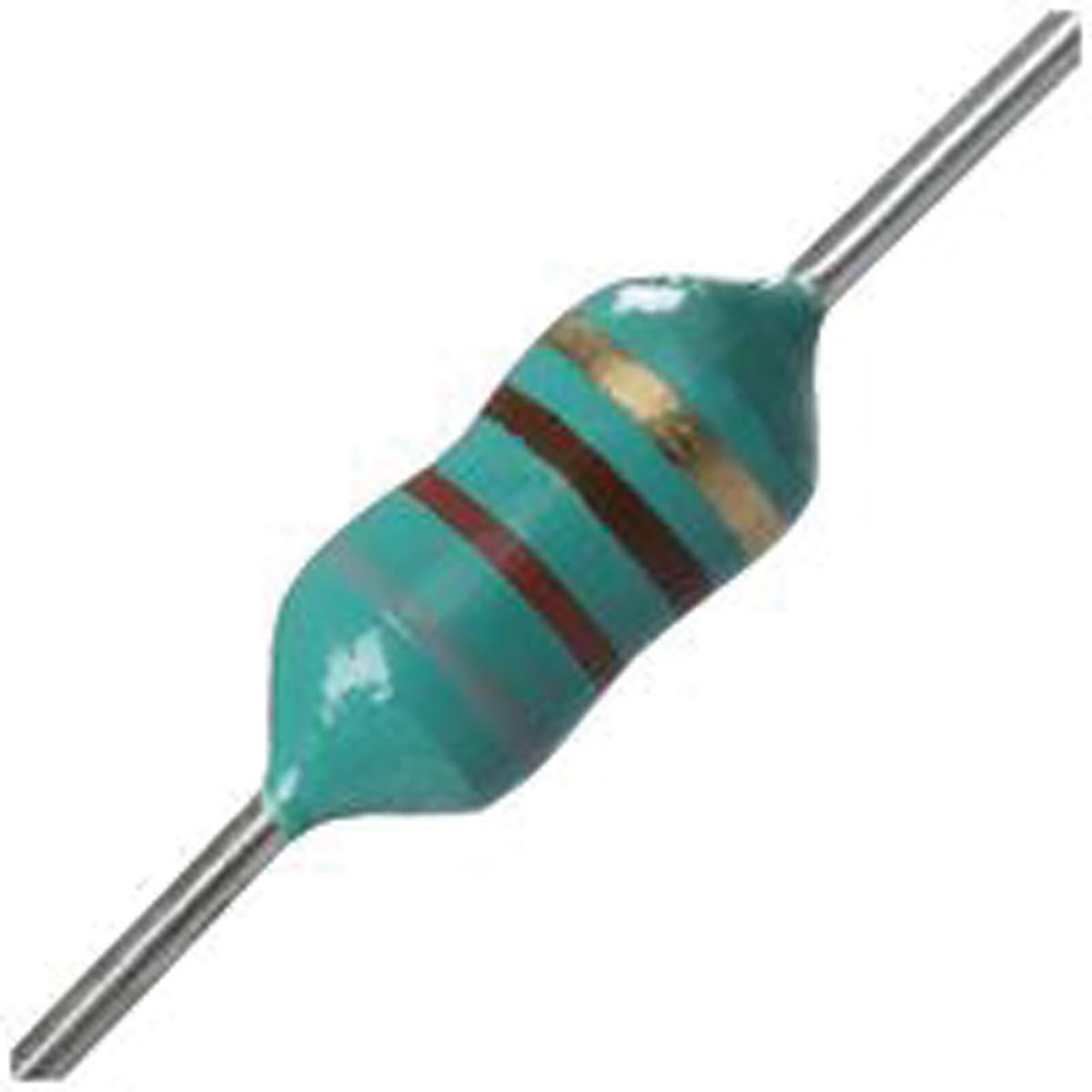

Bourns 560 μH ±5% Ferrite DR Leaded Inductor, Max SRF:2.35MHz, Q:60, 85mA Idc, 15.5Ω Rdc 78F

78F561J-RC Bourns 560 μH ±5% Ferrite DR Leaded Inductor, Max SRF:2.35MHz, Q:60, 85mA Idc, 15.5Ω Rdc 78F
Bourns

Product Information

Diameter:
2.79mm
Dimensions:
2.79 (Dia.) x 7.11mm
Lead Diameter:
0.51mm
Maximum DC Resistance:
15.5Ω
Maximum DC Current:
85mA
Series:
78F
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
60
Height:
7.11mm
Length:
57.91mm
Core Material:
Ferrite DR
Inductance:
560 μH
Maximum Self Resonant Frequency:
2.35MHz
Mounting Type:
Axial
Maximum Operating Temperature:
+105°C
Tolerance:
±5%
Terminal Type:
Axial Leaded
RoHs Compliant
Checking for live stock

This is 560 μH ±5% Ferrite DR Leaded Inductor Max SRF:2.35MHz Q:60 85mA Idc 15.5Ω Rdc 78F manufactured by Bourns. The manufacturer part number is 78F561J-RC. Its diameter is 2.79mm. The given dimensions of the product include 2.79 (dia.) x 7.11mm. Furthermore, the lead has 0.51mm diameter. It allows up to 15.5ω maximum DC resistance. While it carries 85ma of maximum DC current. The product 78f, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 60 quality factors. In addition, the height is 7.11mm. Its accurate length is 57.91mm. The core is manufactured from highly durable and reliable ferrite dr materials. The product has a 560 μh inductance value. It provides 2.35mhz of maximum self-resonant frequency. The product is available in axial configuration. It has a maximum operating temperature of +105°c. It features ±5% of tolerance value. The terminal is a axial leaded type.
