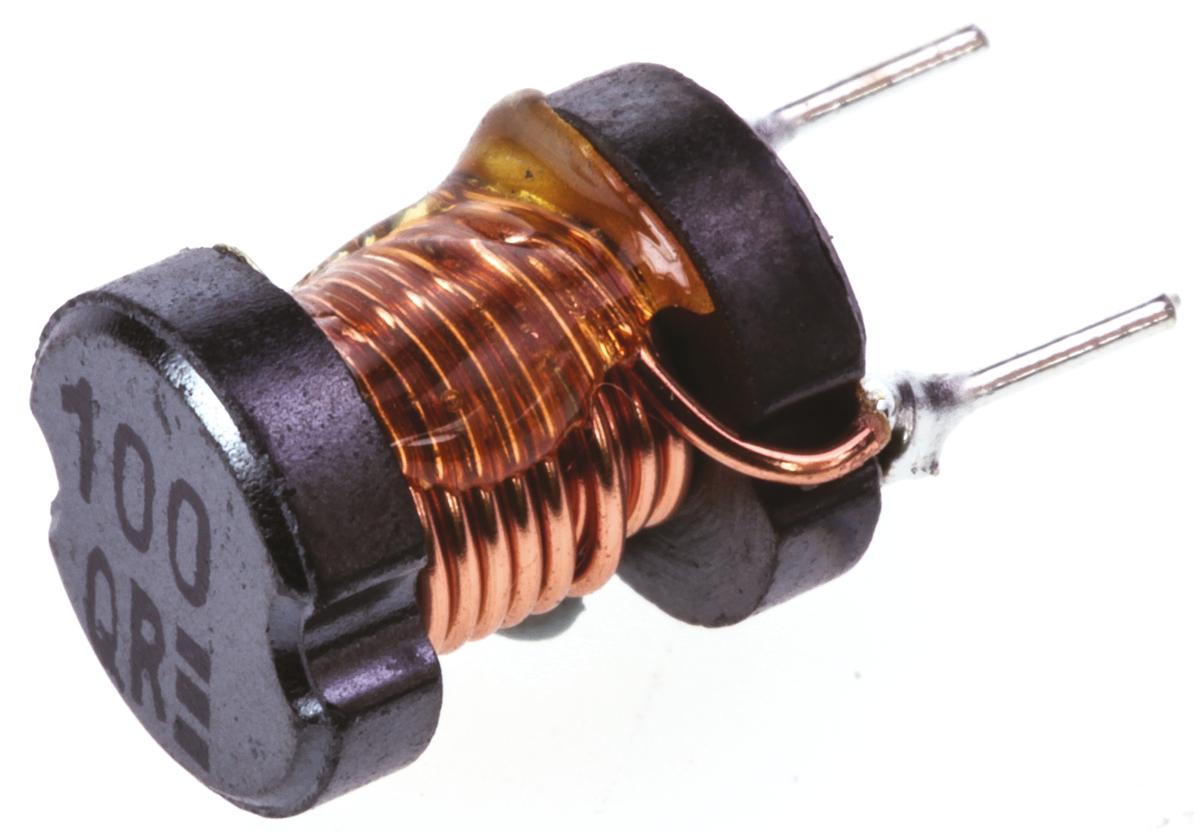

Panasonic 10 μH ±20% Ferrite Leaded Inductor, 2.8A Idc, 22mΩ Rdc ELC08D

ELC08D100E Panasonic 10 μH ±20% Ferrite Leaded Inductor, 2.8A Idc, 22mΩ Rdc ELC08D
ELC08D100E
Panasonic

Product Information

Diameter:
8mm
Dimensions:
10 x 8.5 x 13mm
Lead Diameter:
0.6mm
Maximum DC Resistance:
22mΩ
Maximum DC Current:
2.8A
Series:
ELC08D
Minimum Operating Temperature:
-20°C
Length:
10mm
Height:
13mm
Depth:
8.5mm
Core Material:
Ferrite
Inductance:
10 μH
Mounting Type:
Radial
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Terminal Type:
Through Hole
RoHs Compliant
Checking for live stock

This is 10 μH ±20% Ferrite Leaded Inductor 2.8A Idc 22mΩ Rdc ELC08D manufactured by Panasonic. The manufacturer part number is ELC08D100E. Its diameter is 8mm. The given dimensions of the product include 10 x 8.5 x 13mm. Furthermore, the lead has 0.6mm diameter. It allows up to 22mω maximum DC resistance. While it carries 2.8a of maximum DC current. The product elc08d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. Its accurate length is 10mm. In addition, the height is 13mm. The product comes in 8.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 μh inductance value. The product is available in radial configuration. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. The terminal is a through hole type.
