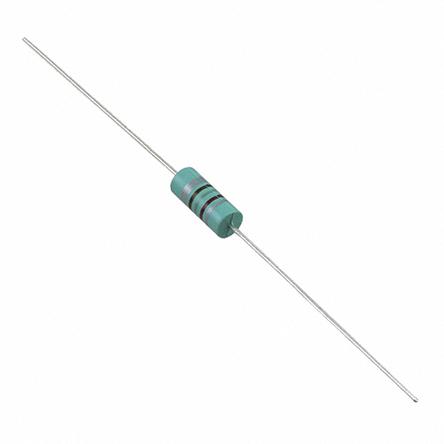

Vishay 10 mH ±10% Ferrite Leaded Inductor, Max SRF:3.8MHz, Q:60, 70mA Idc, 17.5Ω Rdc IMS

IMS05EB103K Vishay 10 mH ±10% Ferrite Leaded Inductor, Max SRF:3.8MHz, Q:60, 70mA Idc, 17.5Ω Rdc IMS
Vishay

Product Information

Diameter:
4.11mm
Dimensions:
4.11 (Dia.) x 10.41mm
Lead Diameter:
0.63mm
Maximum DC Resistance:
137Ω
Maximum DC Current:
24mA
Series:
IMS
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
60
Height:
10.41mm
Length:
83.55mm
Core Material:
Ferrite
Inductance:
10 mH
Maximum Self Resonant Frequency:
3.8MHz
Mounting Type:
Axial
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Terminal Type:
Axial Leaded
RoHs Compliant
Checking for live stock

This is 10 mH ±10% Ferrite Leaded Inductor Max SRF:3.8MHz Q:60 70mA Idc 17.5Ω Rdc IMS manufactured by Vishay. The manufacturer part number is IMS05EB103K. Its diameter is 4.11mm. The given dimensions of the product include 4.11 (dia.) x 10.41mm. Furthermore, the lead has 0.63mm diameter. It allows up to 137ω maximum DC resistance. While it carries 24ma of maximum DC current. The product ims, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 60 quality factors. In addition, the height is 10.41mm. Its accurate length is 83.55mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 mh inductance value. It provides 3.8mhz of maximum self-resonant frequency. The product is available in axial configuration. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a axial leaded type.
