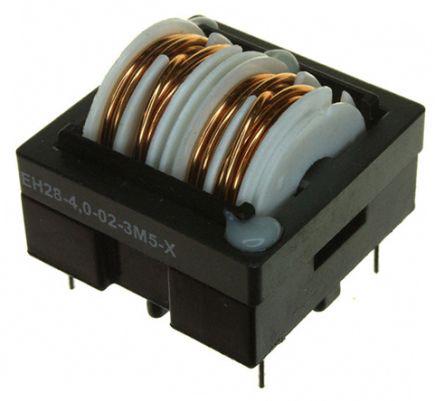

Schaffner 3.5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc EV/EH

EH28-4-0-02-3M5-X Schaffner 3.5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc EV/EH
Schaffner

Product Information

Dimensions:
28 x 28 x 22.9mm
Lead Diameter:
0.8mm
Maximum DC Current:
4A
Series:
EV/EH
Minimum Operating Temperature:
-25°C
Length:
28mm
Height:
22.9mm
Depth:
28mm
Inductance:
3.5 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Through Hole
Lead Pitch:
20 mm, 24 mm
Maximum Operating Temperature:
+100°C
Tolerance:
±30%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 3.5 mH ±30% Common Mode Choke Max SRF:400Hz 4A Idc EV/EH manufactured by Schaffner. The manufacturer part number is EH28-4.0-02-3M5-X. The given dimensions of the product include 28 x 28 x 22.9mm. Furthermore, the lead has 0.8mm diameter. While it carries 4a of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 28mm. In addition, the height is 22.9mm. The product comes in 28mm depth. The product has a 3.5 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 20 mm, 24 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EH28-4.0-02-3M5-X on website for other similar products.
We accept all major payment methods for all products including ET14162342. Please check your shopping cart at the time of order.
You can order Schaffner brand products with EH28-4.0-02-3M5-X directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner 3.5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc EV/EH. You can also check on our website or by contacting our customer support team for further order details on Schaffner 3.5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc EV/EH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14162342 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14162342.
Yes. We ship EH28-4.0-02-3M5-X Internationally to many countries around the world.
