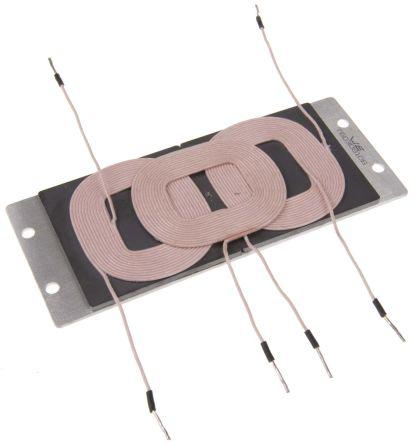

Wurth 12.5 μH ±10% Ferrite Coil Inductor, Max SRF:10MHz, Q:140, 9A Idc, 65mΩ Rdc WE-WPCC

Enrgtech Part No: ET14117321
|
Manufacturer Part No:
760308106
|
Manufacturer: Wurth Elektronik

(0)

Product Information

Maximum DC Resistance:

65mΩ

Dimensions:

130 x 54.7 x 8mm

Lead Diameter:

2mm

Maximum DC Current:

Series:

WE-WPCC

Minimum Operating Temperature:

-20°C

Minimum Quality Factor:

140

Length:

130mm

Height:

8mm

Depth:

54.7mm

Core Material:

Ferrite

Inductance:

12.5 μH

Checking for live stock

This is Wurth 12.5 μH ±10% Ferrite Coil Inductor Max SRF:10MHz Q:140 9A Idc 65mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308106. It allows up to 65mω maximum DC resistance. The given dimensions of the product include 130 x 54.7 x 8mm. Furthermore, the lead has 2mm diameter. While it carries 9a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has minimum 140 quality factors. Its accurate length is 130mm. In addition, the height is 8mm. The product comes in 54.7mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 12.5 μh inductance value. It provides 10mhz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. The terminal is a through hole type.

WE-WPCC Wireless Power Charging CoilData Sheet(Technical Reference)

Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
