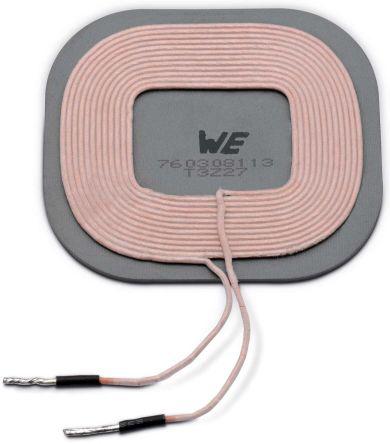

Wurth 12 μH ±10% Ferrite Wireless Charging Coil, Max SRF:16MHz, Q:120, 8A Idc, 72mΩ Rdc WE-WPCC

760308104113 Wurth 12 μH ±10% Ferrite Wireless Charging Coil, Max SRF:16MHz, Q:120, 8A Idc, 72mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Maximum DC Resistance:
72mΩ
Dimensions:
59.5 x 52 x 4mm
Mounting Type:
Axial
Maximum DC Current:
8A
Series:
WE-WPCC
Minimum Quality Factor:
120
Length:
59.5mm
Height:
52mm
Depth:
4mm
Core Material:
Ferrite
Inductance:
12 μH
Maximum Self Resonant Frequency:
16MHz
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

This is Wurth 12 μH ±10% Ferrite Wireless Charging Coil Max SRF:16MHz Q:120 8A Idc 72mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308104113. It allows up to 72mω maximum DC resistance. The given dimensions of the product include 59.5 x 52 x 4mm. The product is available in axial configuration. While it carries 8a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 120 quality factors. Its accurate length is 59.5mm. In addition, the height is 52mm. The product comes in 4mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 12 μh inductance value. It provides 16mhz of maximum self-resonant frequency. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
