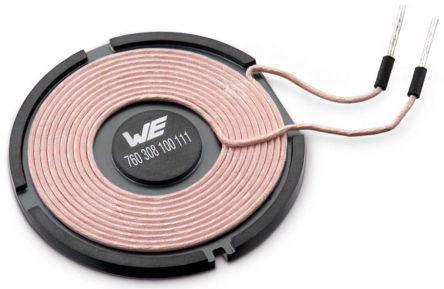

Wurth 6.3 μH ±10% Ferrite Wireless Charging Coil, Max SRF:24MHz, Q:120, 6A Idc, 48mΩ Rdc WE-WPCC

Enrgtech Part No: ET14117318
|
Manufacturer Part No:
760308100111
|
Manufacturer: Wurth Elektronik

760308100111 Wurth 6.3 μH ±10% Ferrite Wireless Charging Coil, Max SRF:24MHz, Q:120, 6A Idc, 48mΩ Rdc WE-WPCC

Product Information

Diameter:

50mm

Dimensions:

50 x 48.3 x 4.7mm

Mounting Type:

Axial

Maximum DC Resistance:

48mΩ

Maximum DC Current:

Series:

WE-WPCC

Minimum Quality Factor:

120

Height:

48.3mm

Depth:

4.7mm

Core Material:

Ferrite

Inductance:

6.3 μH

Maximum Self Resonant Frequency:

24MHz

Checking for live stock

This is Wurth 6.3 μH ±10% Ferrite Wireless Charging Coil Max SRF:24MHz Q:120 6A Idc 48mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308100111. Its diameter is 50mm. The given dimensions of the product include 50 x 48.3 x 4.7mm. The product is available in axial configuration. It allows up to 48mω maximum DC resistance. While it carries 6a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 120 quality factors. In addition, the height is 48.3mm. The product comes in 4.7mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 6.3 μh inductance value. It provides 24mhz of maximum self-resonant frequency. The lead features 18mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.
