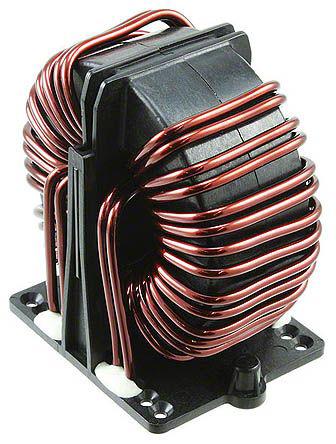

Schaffner 1.5 mH -30 → +50% Leaded Inductor, Max SRF:400Hz, 36A Idc, 3mΩ Rdc RB

RB8522-36-1M5 Schaffner 1.5 mH -30 → +50% Leaded Inductor, Max SRF:400Hz, 36A Idc, 3mΩ Rdc RB
Schaffner

Product Information

Maximum DC Resistance:
3mΩ
Dimensions:
60 x 50.5 x 80mm
Lead Diameter:
2.2mm
Maximum DC Current:
36A
Series:
RB
Minimum Operating Temperature:
-40°C
Length:
60mm
Height:
80mm
Depth:
50.5mm
Inductance:
1.5 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Radial
Lead Pitch:
5.08mm
Maximum Operating Temperature:
+125°C
Tolerance:
-30 → +50%
Terminal Type:
PC Pin
RoHs Compliant
Checking for live stock

This is 1.5 mH -30 → +50% Leaded Inductor Max SRF:400Hz 36A Idc 3mΩ Rdc RB manufactured by Schaffner. The manufacturer part number is RB8522-36-1M5. It allows up to 3mω maximum DC resistance. The given dimensions of the product include 60 x 50.5 x 80mm. Furthermore, the lead has 2.2mm diameter. While it carries 36a of maximum DC current. The product rb, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 60mm. In addition, the height is 80mm. The product comes in 50.5mm depth. The product has a 1.5 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 5.08mm pitch. It has a maximum operating temperature of +125°c. It features -30 → +50% of tolerance value. The terminal is a pc pin type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search RB8522-36-1M5 on website for other similar products.
We accept all major payment methods for all products including ET14112914. Please check your shopping cart at the time of order.
You can order Schaffner brand products with RB8522-36-1M5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner 1.5 mH -30 → +50% Leaded Inductor, Max SRF:400Hz, 36A Idc, 3mΩ Rdc RB. You can also check on our website or by contacting our customer support team for further order details on Schaffner 1.5 mH -30 → +50% Leaded Inductor, Max SRF:400Hz, 36A Idc, 3mΩ Rdc RB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14112914 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14112914.
Yes. We ship RB8522-36-1M5 Internationally to many countries around the world.
