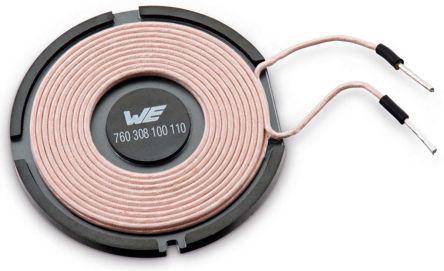

Wurth 24 μH ±10% Ferrite Wireless Charging Coil, Max SRF:5MHz, Q:180, 6A Idc, 100mΩ Rdc WE-WPCC

Enrgtech Part No: ET14068497
|
Manufacturer Part No:
760308100110
|
Manufacturer: Wurth Elektronik

(0)

Product Information

Diameter:

50mm

Dimensions:

50 x 48 x 6mm

Mounting Type:

Axial

Maximum DC Resistance:

100mΩ

Maximum DC Current:

Series:

WE-WPCC

Minimum Quality Factor:

180

Height:

48mm

Depth:

6mm

Core Material:

Ferrite

Inductance:

24 μH

Maximum Self Resonant Frequency:

5MHz

Checking for live stock

This is Wurth 24 μH ±10% Ferrite Wireless Charging Coil Max SRF:5MHz Q:180 6A Idc 100mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308100110. Its diameter is 50mm. The given dimensions of the product include 50 x 48 x 6mm. The product is available in axial configuration. It allows up to 100mω maximum DC resistance. While it carries 6a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 180 quality factors. In addition, the height is 48mm. The product comes in 6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 24 μh inductance value. It provides 5mhz of maximum self-resonant frequency. The lead features 18mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

Datasheet(Technical Reference)

High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)

Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
