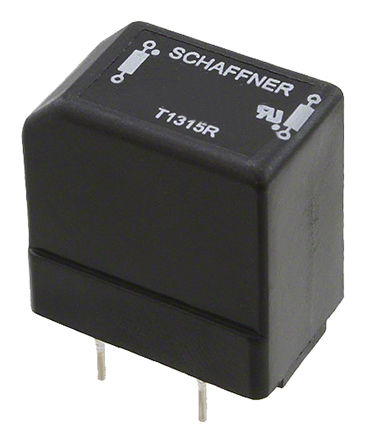

Schaffner 55 μH Leaded Inductor, Max SRF:20MHz, 1A Idc, 130mΩ Rdc RS

RS612-1-02 Schaffner 55 μH Leaded Inductor, Max SRF:20MHz, 1A Idc, 130mΩ Rdc RS
Schaffner

Product Information

Maximum DC Resistance:
130mΩ
Dimensions:
18.3 x 12.8 x 20.3mm
Mounting Type:
Radial
Maximum DC Current:
1A
Series:
RS
Minimum Operating Temperature:
-40°C
Length:
18.3mm
Height:
20.3mm
Depth:
12.8mm
Inductance:
55 μH
Maximum Self Resonant Frequency:
20MHz
Lead Pitch:
15mm
Maximum Operating Temperature:
+125°C
Terminal Type:
PC Pin
RoHs Compliant
Checking for live stock

This is 55 μH Leaded Inductor Max SRF:20MHz 1A Idc 130mΩ Rdc RS manufactured by Schaffner. The manufacturer part number is RS612-1-02. It allows up to 130mω maximum DC resistance. The given dimensions of the product include 18.3 x 12.8 x 20.3mm. The product is available in radial configuration. While it carries 1a of maximum DC current. The product rs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 18.3mm. In addition, the height is 20.3mm. The product comes in 12.8mm depth. The product has a 55 μh inductance value. It provides 20mhz of maximum self-resonant frequency. The lead features 15mm pitch. It has a maximum operating temperature of +125°c. The terminal is a pc pin type.
