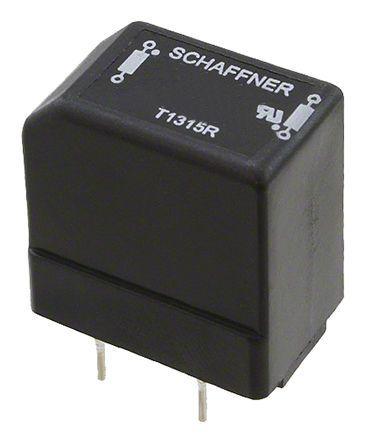

Schaffner 1 (Dual Load) mH, 250 (Dual Load) μH Common Mode Choke, Max SRF:2 (Single Load) MHz, 8 (Dual Load) MHz

RS612-0-5-02 Schaffner 1 (Dual Load) mH, 250 (Dual Load) μH Common Mode Choke, Max SRF:2 (Single Load) MHz, 8 (Dual Load) MHz
Schaffner

Product Information

Maximum DC Resistance:
1.3 (Single Load) Ω, 650 (Dual Load) mΩ
Dimensions:
12.5 x 18 x 20mm
Lead Diameter:
0.8mm
Maximum DC Current:
500mA
Series:
RS
Minimum Operating Temperature:
-40°C
Length:
12.5mm
Height:
20mm
Depth:
18mm
Inductance:
1 (Dual Load) mH, 250 (Dual Load) μH
Maximum Self Resonant Frequency:
2 (Single Load) MHz, 8 (Dual Load) MHz
Mounting Type:
Radial
Lead Pitch:
15mm
Maximum Operating Temperature:
+125°C
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 1 (Dual Load) mH 250 (Dual Load) μH Common Mode Choke Max SRF:2 (Single Load) MHz 8 (Dual Load) MHz manufactured by Schaffner. The manufacturer part number is RS612-0.5-02. It allows up to 1.3 (single load) ω, 650 (dual load) mω maximum DC resistance. The given dimensions of the product include 12.5 x 18 x 20mm. Furthermore, the lead has 0.8mm diameter. While it carries 500ma of maximum DC current. The product rs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 12.5mm. In addition, the height is 20mm. The product comes in 18mm depth. The product has a 1 (dual load) mh, 250 (dual load) μh inductance value. It provides 2 (single load) mhz, 8 (dual load) mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 15mm pitch. It has a maximum operating temperature of +125°c. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)
pdf icon
Schaffner EMC/EMI Catalogue(Technical Reference)
