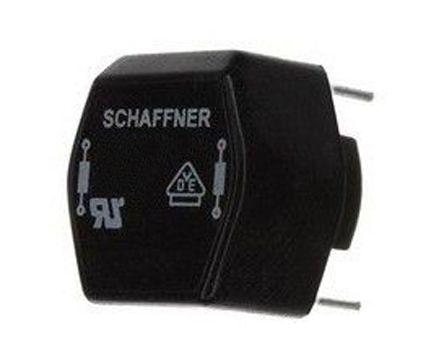

Schaffner 1 (Dual Load) mH, 250 (Dual Load) μH Common Mode Choke, Max SRF:2 (Single Load) MHz, 8 (Dual Load) MHz

Enrgtech Part No: ET14064062
|
Manufacturer Part No:
RS512-0.5-02
|
Manufacturer: Schaffner

RS512-0-5-02 Schaffner 1 (Dual Load) mH, 250 (Dual Load) μH Common Mode Choke, Max SRF:2 (Single Load) MHz, 8 (Dual Load) MHz

Product Information

Maximum DC Resistance:

1.3 (Single Load) Ω, 650 (Dual Load) mΩ

Dimensions:

17.1 x 17.7 x 12.5mm

Lead Diameter:

0.8mm

Maximum DC Current:

500mA

Series:

Minimum Operating Temperature:

-40°C

Length:

17.1mm

Height:

12.5mm

Depth:

17.7mm

Inductance:

1 (Dual Load) mH, 250 (Dual Load) μH

Maximum Self Resonant Frequency:

2 (Single Load) MHz, 8 (Dual Load) MHz

Mounting Type:

Radial

Checking for live stock

This is 1 (Dual Load) mH 250 (Dual Load) μH Common Mode Choke Max SRF:2 (Single Load) MHz 8 (Dual Load) MHz manufactured by Schaffner. The manufacturer part number is RS512-0.5-02. It allows up to 1.3 (single load) ω, 650 (dual load) mω maximum DC resistance. The given dimensions of the product include 17.1 x 17.7 x 12.5mm. Furthermore, the lead has 0.8mm diameter. While it carries 500ma of maximum DC current. The product rs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 17.1mm. In addition, the height is 12.5mm. The product comes in 17.7mm depth. The product has a 1 (dual load) mh, 250 (dual load) μh inductance value. It provides 2 (single load) mhz, 8 (dual load) mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 15mm pitch. It has a maximum operating temperature of +125°c. The terminal is a radial leaded type.

Datasheet(Technical Reference)

Schaffner EMC/EMI Catalogue(Technical Reference)
