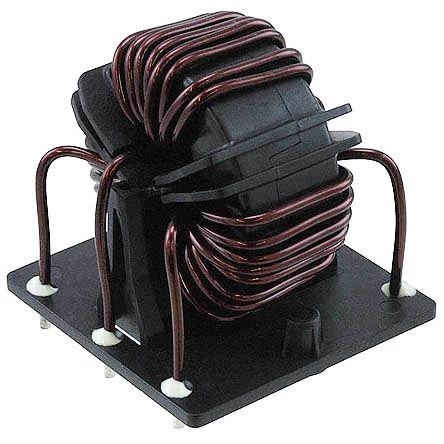

Schaffner 800 μH -30 → +50% Leaded Inductor, Max SRF:400Hz, 16A Idc, 4.7mΩ Rdc RB

RB6532-16-0M8 Schaffner 800 μH -30 → +50% Leaded Inductor, Max SRF:400Hz, 16A Idc, 4.7mΩ Rdc RB
Schaffner

Product Information

Maximum DC Resistance:
4.7mΩ
Dimensions:
58 x 55 x 58mm
Lead Diameter:
2mm
Terminal Type:
PC Pin
Maximum DC Current:
16A
Series:
RB
Minimum Operating Temperature:
-40°C
Length:
58mm
Height:
58mm
Depth:
55mm
Inductance:
800 μH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Radial
Lead Pitch:
20.32mm
Maximum Operating Temperature:
+125°C
Tolerance:
-30 → +50%
CAD Drawing:
3D CAD Model
RoHs Compliant
Checking for live stock

This is 800 μH -30 → +50% Leaded Inductor Max SRF:400Hz 16A Idc 4.7mΩ Rdc RB manufactured by Schaffner. The manufacturer part number is RB6532-16-0M8. It allows up to 4.7mω maximum DC resistance. The given dimensions of the product include 58 x 55 x 58mm. Furthermore, the lead has 2mm diameter. The terminal is a pc pin type. While it carries 16a of maximum DC current. The product rb, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 58mm. In addition, the height is 58mm. The product comes in 55mm depth. The product has a 800 μh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 20.32mm pitch. It has a maximum operating temperature of +125°c. It features -30 → +50% of tolerance value. It has 3d cad model CAD drawing .
