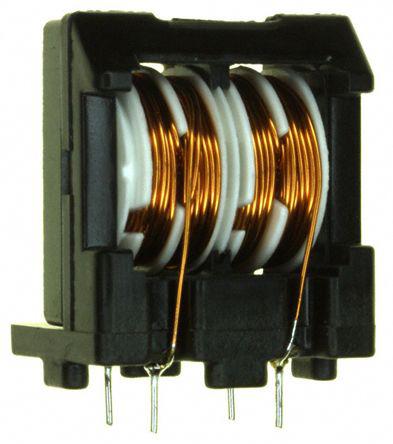

Schaffner 20 mH ±30% Common Mode Choke, Max SRF:400Hz, 1.5A Idc, 282mΩ Rdc EV/EH

Enrgtech Part No: ET14063868
|
Manufacturer Part No:
EV28-1.5-02-20M
|
Manufacturer: Schaffner

EV28-1-5-02-20M Schaffner 20 mH ±30% Common Mode Choke, Max SRF:400Hz, 1.5A Idc, 282mΩ Rdc EV/EH

Product Information

Maximum DC Resistance:

282mΩ

Dimensions:

29.2 x 21 x 34.7mm

Lead Diameter:

0.8mm

Maximum DC Current:

1.5A

Series:

EV/EH

Minimum Operating Temperature:

-25°C

Length:

29.2mm

Height:

34.7mm

Depth:

21mm

Inductance:

20 mH

Maximum Self Resonant Frequency:

400Hz

Mounting Type:

Through Hole

Checking for live stock

This is 20 mH ±30% Common Mode Choke Max SRF:400Hz 1.5A Idc 282mΩ Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EV28-1.5-02-20M. It allows up to 282mω maximum DC resistance. The given dimensions of the product include 29.2 x 21 x 34.7mm. Furthermore, the lead has 0.8mm diameter. While it carries 1.5a of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 29.2mm. In addition, the height is 34.7mm. The product comes in 21mm depth. The product has a 20 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 10 mm, 13 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.
