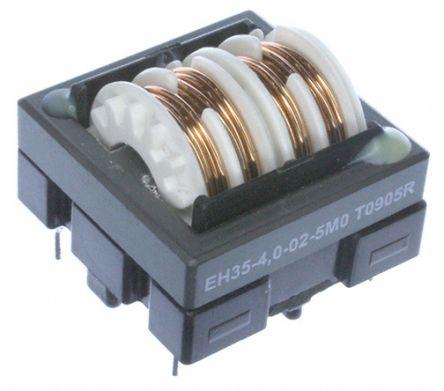

Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc, 53mΩ Rdc EV/EH

EH35-4-0-02-5M0 Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc, 53mΩ Rdc EV/EH
Schaffner

Product Information

Maximum DC Resistance:
53mΩ
Dimensions:
36 x 36 x 27.7mm
Lead Diameter:
1mm
Maximum DC Current:
4A
Series:
EV/EH
Minimum Operating Temperature:
-25°C
Length:
36mm
Height:
27.7mm
Depth:
36mm
Inductance:
5 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Through Hole
Lead Pitch:
25 mm, 30 mm
Maximum Operating Temperature:
+100°C
Tolerance:
±30%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 5 mH ±30% Common Mode Choke Max SRF:400Hz 4A Idc 53mΩ Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EH35-4.0-02-5M0. It allows up to 53mω maximum DC resistance. The given dimensions of the product include 36 x 36 x 27.7mm. Furthermore, the lead has 1mm diameter. While it carries 4a of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 36mm. In addition, the height is 27.7mm. The product comes in 36mm depth. The product has a 5 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 25 mm, 30 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship EH35-4.0-02-5M0 Internationally to many countries around the world.
Yes. You can also search EH35-4.0-02-5M0 on website for other similar products.
We accept all major payment methods for all products including ET14063865. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14063865 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14063865.
You can order Schaffner brand products with EH35-4.0-02-5M0 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc, 53mΩ Rdc EV/EH. You can also check on our website or by contacting our customer support team for further order details on Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 4A Idc, 53mΩ Rdc EV/EH.
