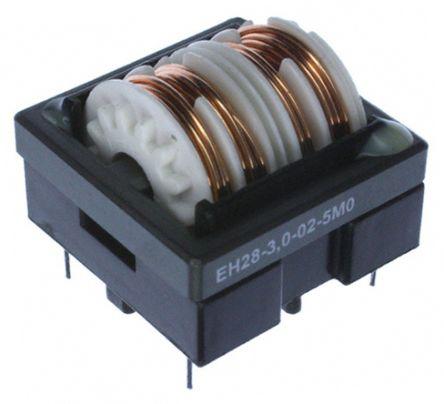

Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 3A Idc, 79mΩ Rdc EV/EH

Enrgtech Part No: ET14063863
|
Manufacturer Part No:
EH28-3.0-02-5M0
|
Manufacturer: Schaffner

EH28-3-0-02-5M0 Schaffner 5 mH ±30% Common Mode Choke, Max SRF:400Hz, 3A Idc, 79mΩ Rdc EV/EH

Product Information

Maximum DC Resistance:

79mΩ

Dimensions:

28 x 28 x 22.9mm

Lead Diameter:

0.8mm

Maximum DC Current:

Series:

EV/EH

Minimum Operating Temperature:

-25°C

Length:

28mm

Height:

22.9mm

Depth:

28mm

Inductance:

5 mH

Maximum Self Resonant Frequency:

400Hz

Mounting Type:

Through Hole

Checking for live stock

This is 5 mH ±30% Common Mode Choke Max SRF:400Hz 3A Idc 79mΩ Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EH28-3.0-02-5M0. It allows up to 79mω maximum DC resistance. The given dimensions of the product include 28 x 28 x 22.9mm. Furthermore, the lead has 0.8mm diameter. While it carries 3a of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 28mm. In addition, the height is 22.9mm. The product comes in 28mm depth. The product has a 5 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 20 mm, 24 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.

Datasheet(Technical Reference)
