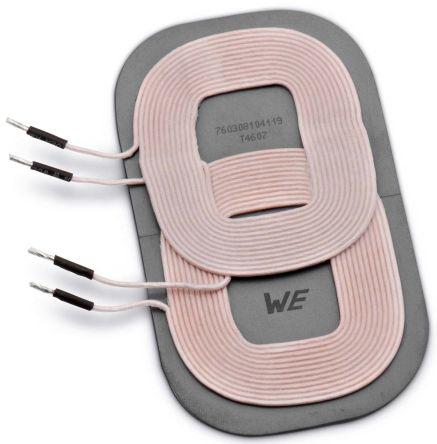

Wurth 11.5 μH, 12 μH ±10% Ferrite Wireless Charging Coil, Max SRF:12MHz, Q:130, 8A Idc, 68mΩ Rdc WE-WPCC

Enrgtech Part No: ET13962082
|
Manufacturer Part No:
760308104119
|
Manufacturer: Wurth Elektronik

760308104119 Wurth 11.5 μH, 12 μH ±10% Ferrite Wireless Charging Coil, Max SRF:12MHz, Q:130, 8A Idc, 68mΩ Rdc WE-WPCC

Product Information

Maximum DC Resistance:

68mΩ

Dimensions:

88.5 x 52.5 x 3.5mm

Mounting Type:

Axial

Maximum DC Current:

Series:

WE-WPCC

Minimum Quality Factor:

130

Length:

88.5mm

Height:

52.5mm

Depth:

3.5mm

Core Material:

Ferrite

Inductance:

11.5 μH, 12 μH

Maximum Self Resonant Frequency:

12MHz

Checking for live stock

This is Wurth 11.5 μH 12 μH ±10% Ferrite Wireless Charging Coil Max SRF:12MHz Q:130 8A Idc 68mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308104119. It allows up to 68mω maximum DC resistance. The given dimensions of the product include 88.5 x 52.5 x 3.5mm. The product is available in axial configuration. While it carries 8a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 130 quality factors. Its accurate length is 88.5mm. In addition, the height is 52.5mm. The product comes in 3.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 11.5 μh, 12 μh inductance value. It provides 12mhz of maximum self-resonant frequency. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

Datasheet(Technical Reference)

Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
