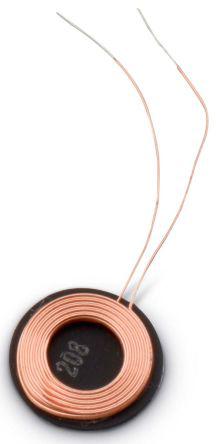

Wurth 13 μH ±10% Ferrite Wireless Charging Coil, Max SRF:26MHz, Q:17, 800mA Idc, 500mΩ Rdc WE-WPCC

760308101208 Wurth 13 μH ±10% Ferrite Wireless Charging Coil, Max SRF:26MHz, Q:17, 800mA Idc, 500mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Diameter:
10.3mm
Dimensions:
10.3 x 10 x 1.68mm
Lead Diameter:
0.2mm
Maximum DC Resistance:
500mΩ
Maximum DC Current:
800mA
Series:
WE-WPCC
Minimum Quality Factor:
17
Height:
10mm
Depth:
1.68mm
Core Material:
Ferrite
Inductance:
13 μH
Maximum Self Resonant Frequency:
26MHz
Mounting Type:
Axial
Lead Pitch:
2mm
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

This is Wurth 13 μH ±10% Ferrite Wireless Charging Coil Max SRF:26MHz Q:17 800mA Idc 500mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308101208. Its diameter is 10.3mm. The given dimensions of the product include 10.3 x 10 x 1.68mm. Furthermore, the lead has 0.2mm diameter. It allows up to 500mω maximum DC resistance. While it carries 800ma of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 17 quality factors. In addition, the height is 10mm. The product comes in 1.68mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 13 μh inductance value. It provides 26mhz of maximum self-resonant frequency. The product is available in axial configuration. The lead features 2mm pitch. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search 760308101208 on website for other similar products.
We accept all major payment methods for all products including ET13962080. Please check your shopping cart at the time of order.
You can order Wurth Elektronik brand products with 760308101208 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth 13 μH ±10% Ferrite Wireless Charging Coil, Max SRF:26MHz, Q:17, 800mA Idc, 500mΩ Rdc WE-WPCC. You can also check on our website or by contacting our customer support team for further order details on Wurth 13 μH ±10% Ferrite Wireless Charging Coil, Max SRF:26MHz, Q:17, 800mA Idc, 500mΩ Rdc WE-WPCC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13962080 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13962080.
Yes. We ship 760308101208 Internationally to many countries around the world.
