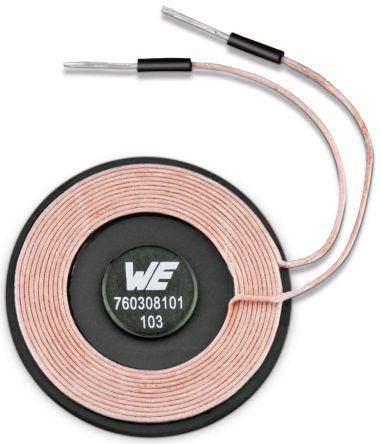

Wurth 6.5 μH ±10% Ferrite Wireless Charging Coil, Max SRF:20MHz, Q:35, 3A Idc, 180mΩ Rdc WE-WPCC

760308101103 Wurth 6.5 μH ±10% Ferrite Wireless Charging Coil, Max SRF:20MHz, Q:35, 3A Idc, 180mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Diameter:
30mm
Dimensions:
30 x 28 x 1.9mm
Mounting Type:
Axial
Maximum DC Resistance:
180mΩ
Maximum DC Current:
3A
Series:
WE-WPCC
Minimum Quality Factor:
35
Height:
28mm
Depth:
1.9mm
Core Material:
Ferrite
Inductance:
6.5 μH
Maximum Self Resonant Frequency:
20MHz
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

This is Wurth 6.5 μH ±10% Ferrite Wireless Charging Coil Max SRF:20MHz Q:35 3A Idc 180mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308101103. Its diameter is 30mm. The given dimensions of the product include 30 x 28 x 1.9mm. The product is available in axial configuration. It allows up to 180mω maximum DC resistance. While it carries 3a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 35 quality factors. In addition, the height is 28mm. The product comes in 1.9mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 6.5 μh inductance value. It provides 20mhz of maximum self-resonant frequency. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 760308101103 on website for other similar products.
We accept all major payment methods for all products including ET13962079. Please check your shopping cart at the time of order.
You can order Wurth Elektronik brand products with 760308101103 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth 6.5 μH ±10% Ferrite Wireless Charging Coil, Max SRF:20MHz, Q:35, 3A Idc, 180mΩ Rdc WE-WPCC. You can also check on our website or by contacting our customer support team for further order details on Wurth 6.5 μH ±10% Ferrite Wireless Charging Coil, Max SRF:20MHz, Q:35, 3A Idc, 180mΩ Rdc WE-WPCC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13962079 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13962079.
Yes. We ship 760308101103 Internationally to many countries around the world.
