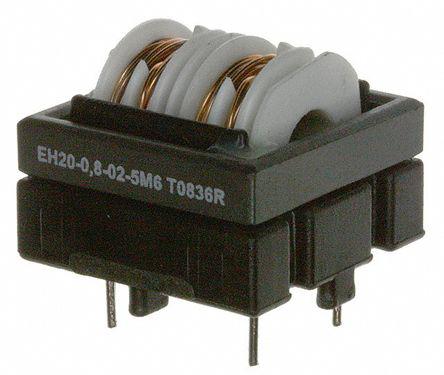

Schaffner 5.6 mH ±30% Common Mode Choke, Max SRF:400Hz, 800mA Idc, 245mΩ Rdc EV/EH

EH20-0-8-02-5M6 Schaffner 5.6 mH ±30% Common Mode Choke, Max SRF:400Hz, 800mA Idc, 245mΩ Rdc EV/EH
Schaffner

Product Information

Maximum DC Resistance:
245mΩ
Dimensions:
21 x 21 x 17.8mm
Lead Diameter:
0.8mm
Maximum DC Current:
800mA
Series:
EV/EH
Minimum Operating Temperature:
-25°C
Length:
21mm
Height:
17.8mm
Depth:
21mm
Inductance:
5.6 mH
Maximum Self Resonant Frequency:
400Hz
Mounting Type:
Through Hole
Lead Pitch:
10 mm, 13 mm
Maximum Operating Temperature:
+100°C
Tolerance:
±30%
Terminal Type:
Radial Leaded
RoHs Compliant
Checking for live stock

This is 5.6 mH ±30% Common Mode Choke Max SRF:400Hz 800mA Idc 245mΩ Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EH20-0.8-02-5M6. It allows up to 245mω maximum DC resistance. The given dimensions of the product include 21 x 21 x 17.8mm. Furthermore, the lead has 0.8mm diameter. While it carries 800ma of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 21mm. In addition, the height is 17.8mm. The product comes in 21mm depth. The product has a 5.6 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 10 mm, 13 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.
