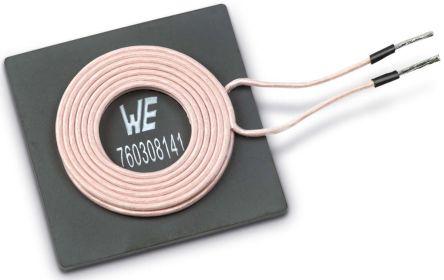

Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:200, 9A Idc, 30mΩ Rdc WE-WPCC

760308141 Wurth 10 μH ±10% Ferrite Wireless Charging Coil, Max SRF:11MHz, Q:200, 9A Idc, 30mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Maximum DC Resistance:
30mΩ
Dimensions:
53.3 x 53.3 x 6.5mm
Mounting Type:
Axial
Maximum DC Current:
9A
Series:
WE-WPCC
Minimum Quality Factor:
200
Length:
53.3mm
Height:
53.3mm
Depth:
6.5mm
Core Material:
Ferrite
Inductance:
10 μH
Maximum Self Resonant Frequency:
11MHz
Maximum Operating Temperature:
+105°C
Tolerance:
±10%
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

This is Wurth 10 μH ±10% Ferrite Wireless Charging Coil Max SRF:11MHz Q:200 9A Idc 30mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308141. It allows up to 30mω maximum DC resistance. The given dimensions of the product include 53.3 x 53.3 x 6.5mm. The product is available in axial configuration. While it carries 9a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. It has minimum 200 quality factors. Its accurate length is 53.3mm. In addition, the height is 53.3mm. The product comes in 6.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 μh inductance value. It provides 11mhz of maximum self-resonant frequency. It has a maximum operating temperature of +105°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -20°c.
