Name: EH20-1.5-02-1M8, Schaffner
Brand: Schaffner
SKU: ET13849739
Price: 1.13 GBP
Availability: PreOrder

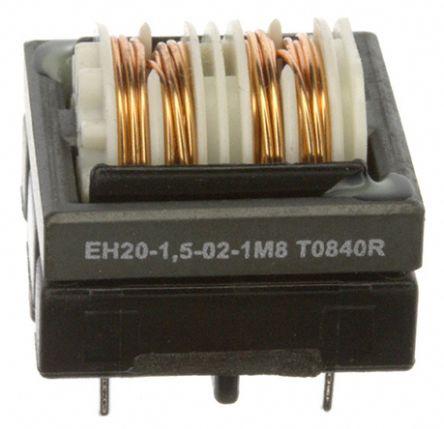

EH20-1-5-02-1M8 Schaffner 1.8 mH ±30% Common Mode Choke, Max SRF:400Hz, 1.5A Idc, 72mΩ Rdc EV/EH

(0)

Product Information

Maximum DC Resistance:

72mΩ

Dimensions:

21 x 21 x 17.8mm

Lead Diameter:

0.8mm

Maximum DC Current:

1.5A

Series:

EV/EH

Minimum Operating Temperature:

-25°C

Length:

21mm

Height:

17.8mm

Depth:

21mm

Inductance:

1.8 mH

Maximum Self Resonant Frequency:

400Hz

Mounting Type:

Through Hole

Checking for live stock

This is 1.8 mH ±30% Common Mode Choke Max SRF:400Hz 1.5A Idc 72mΩ Rdc EV/EH manufactured by Schaffner. The manufacturer part number is EH20-1.5-02-1M8. It allows up to 72mω maximum DC resistance. The given dimensions of the product include 21 x 21 x 17.8mm. Furthermore, the lead has 0.8mm diameter. While it carries 1.5a of maximum DC current. The product ev/eh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 21mm. In addition, the height is 17.8mm. The product comes in 21mm depth. The product has a 1.8 mh inductance value. It provides 400hz of maximum self-resonant frequency. The product is available in through hole configuration. The lead features 10 mm, 13 mm pitch. It has a maximum operating temperature of +100°c. It features ±30% of tolerance value. The terminal is a radial leaded type.
